ATD-SW300:ประตู Auto Swing door แบบฝังพื้น
Related Documents:
-Maximum door weight: 150kg
-Maximum door width: 1200mm
-Maximum torque: 165Nm
-Unit weight: 5.5kg

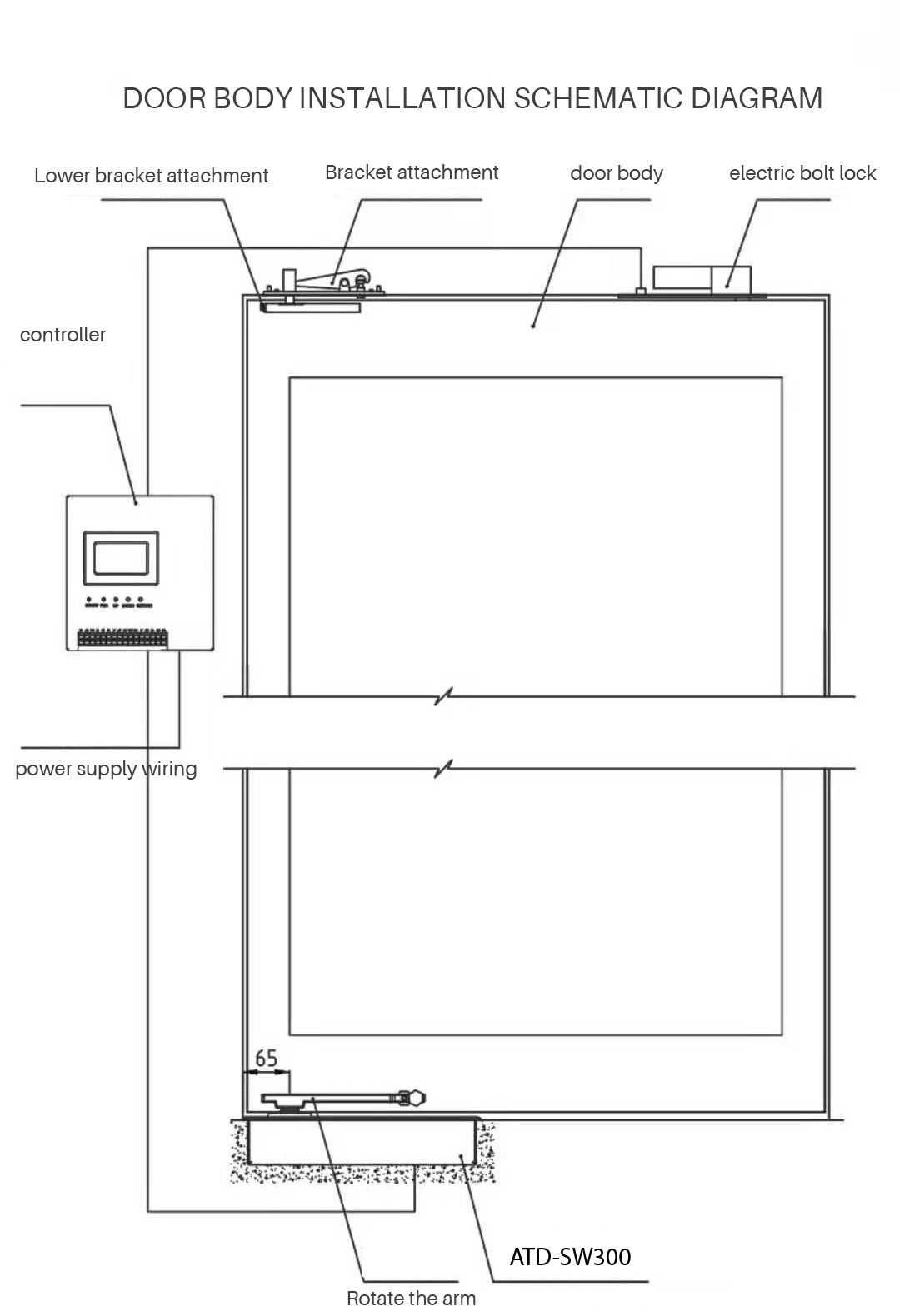

-Installation method: ground embedding
-Running noise: <60dB
-Electric lock output: DC12V normally open/normally closed contact
-opening and closing time: 6-12s
-opening range: 86-95°
-Power supply voltage: AC220V±10%/60Hz
-Rated power: 55W
-Standby power: <2W
-Working temperature -20~+50
-Protection level: lp68

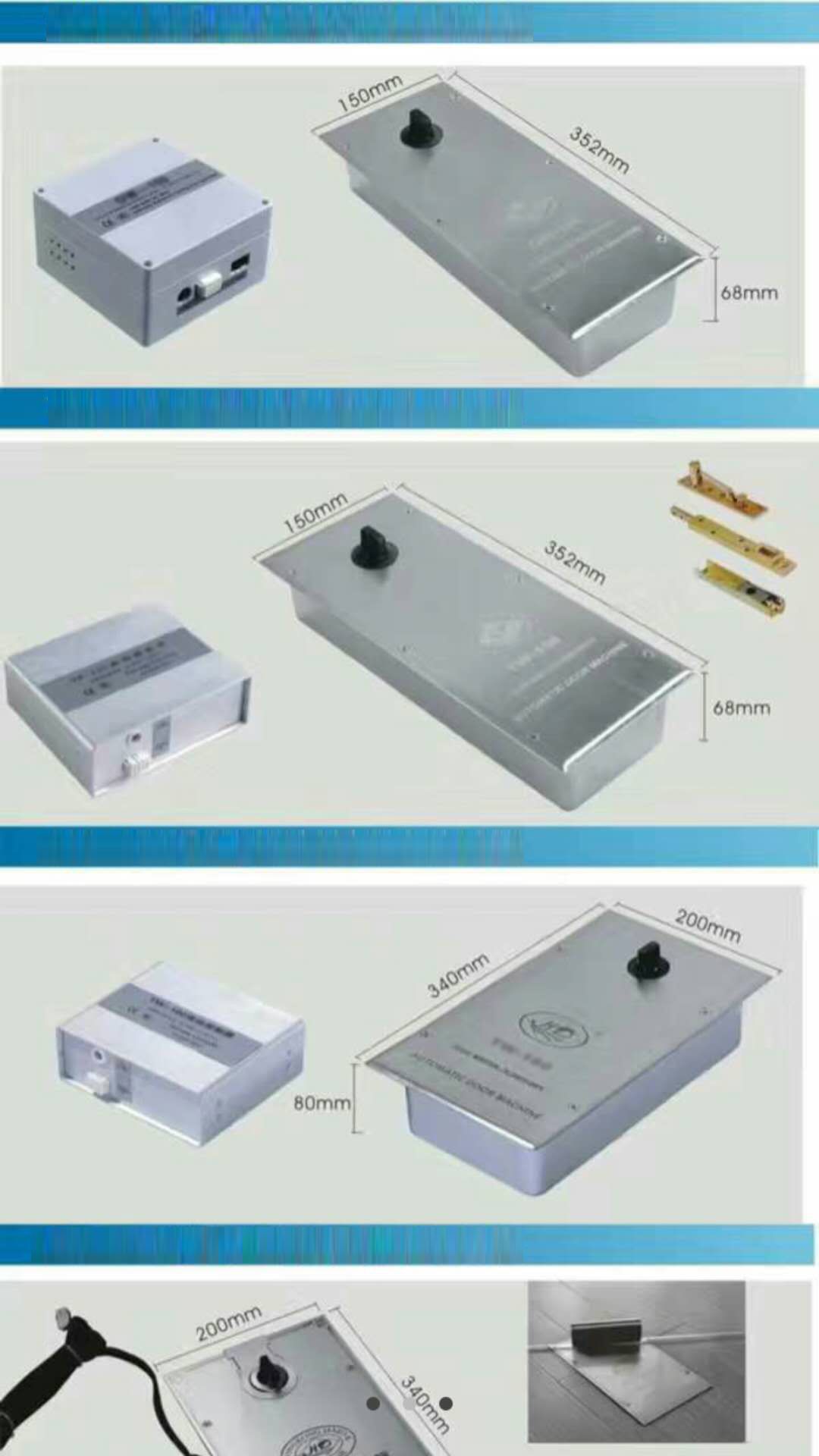

-Unit size: 330X116×100(mm)
-Control box size: 215X205×60(mm)
