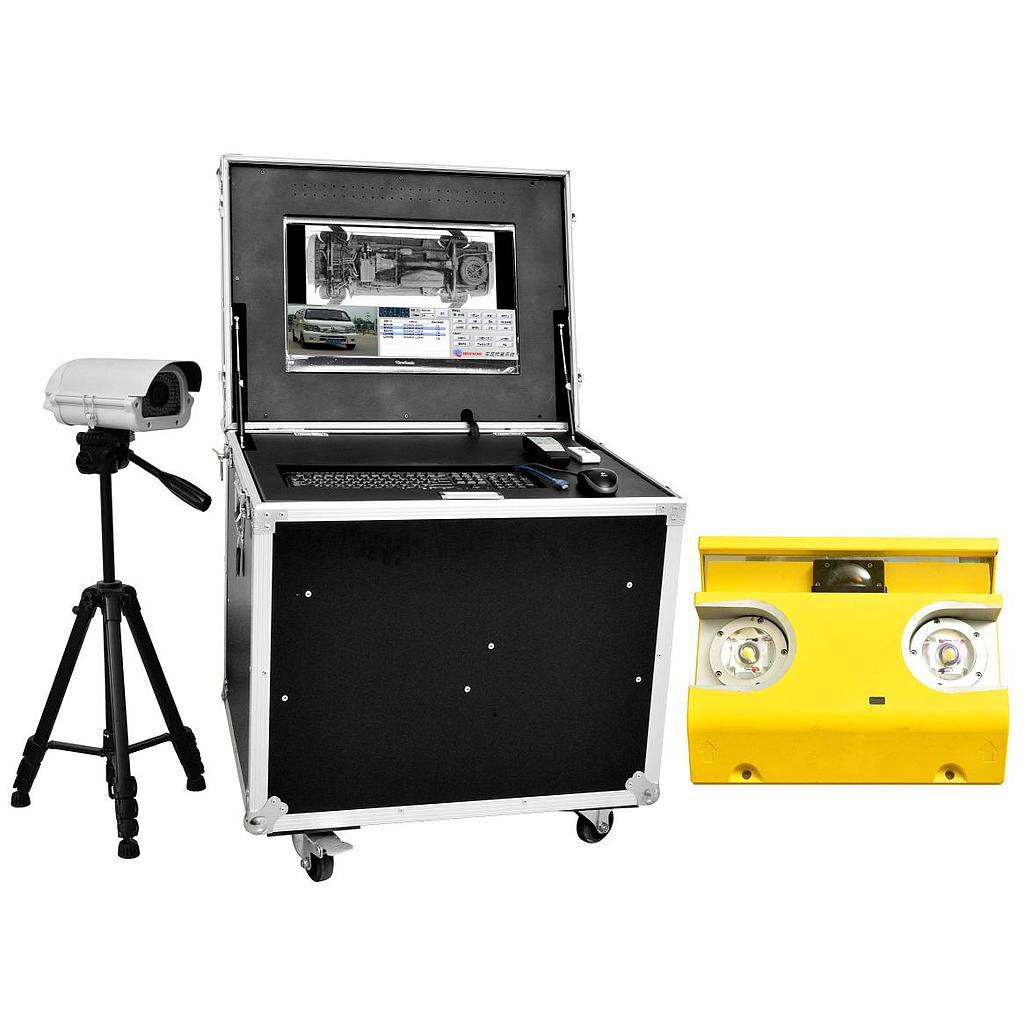

SE-UVSS01:เครื่องสแกนใต้ท้องรถ แบบ เคลื่อนย้าย Mobile type

Scanning method : linear scan , ground coil trigger
Maximum scan rate: 18Khz
Vertical resolutions of the underbody image: 2048 pixel CCD
Image Resolutions: > 12000x6000
Detecting speed : 1-60km/h Recommendation <= 30km/h
Scanner data line: 10meters (customizable length)
Field of view: >=170 degree
Lighting assembly : Single sealed LED surface light source
Scanning direction: one-way (reflex imaging)
two-way (top imaging)
Load bearing : 30T
waterproof level: IP68 meets all-weather work
Ambient temperature : -20° ~ +60°
Scanner weight : 15.28kg (reflective imaging)
12.75kg (top imaging)
Scanner size : L400 W340 H78mm (reflective imaging)
L400 W280 H80mm (top imaging)
