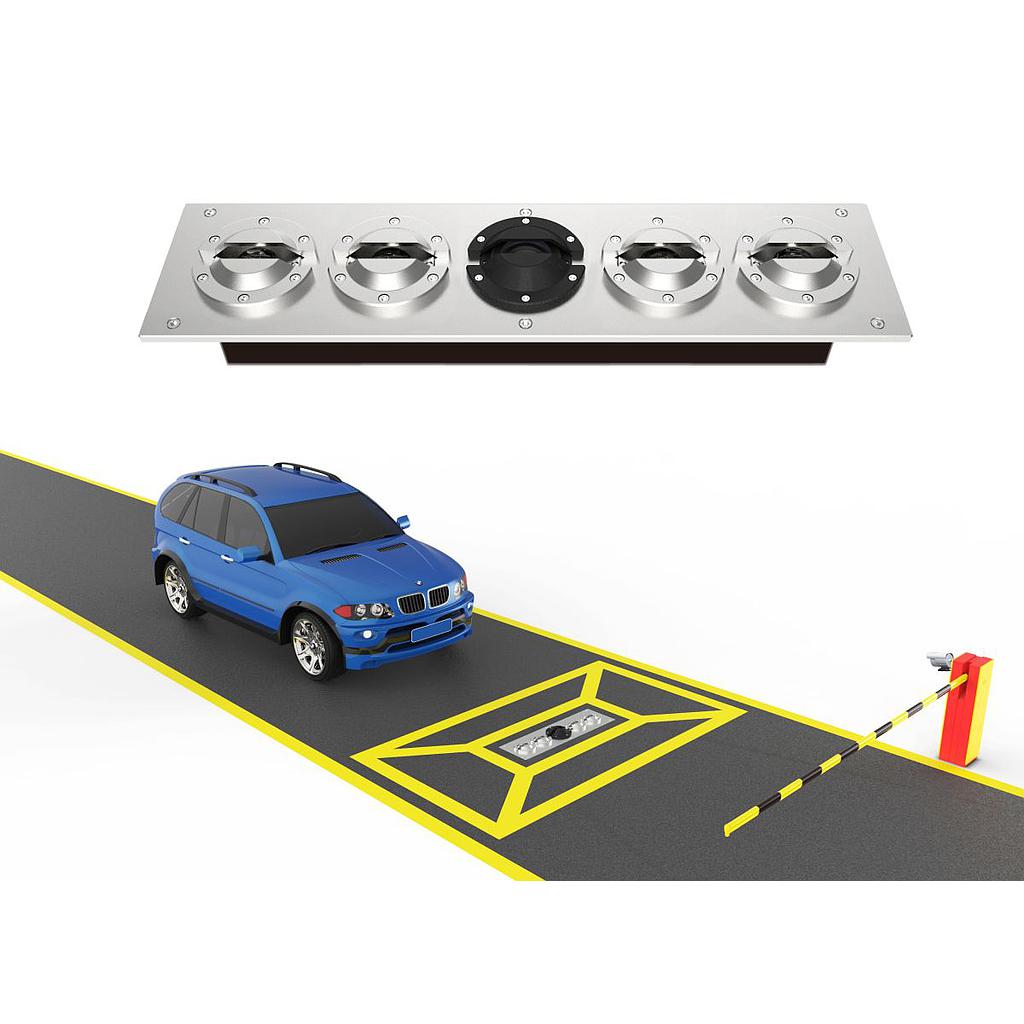

SE-UVSS02:เครื่องสแกนใต้ท้องรถ แบบฝังพื้น Fixed type

Scanning method : linear scan , ground coil trigger
Maximum scan rate: 18Khz
Vertical resolutions of the underbody image: 2048 pixel CCD
Image Resolutions: > 12000x6000
Detecting speed : 1-60km/h Recommendation <= 30km/h
Scanner data line: 100meters (customizable length)
Field of view: >=170 degree
Lighting assembly : Single sealed LED surface light source
Scanning direction: two-way
Load bearing : 50T
waterproof level: IP68 meets all-weather work
Ambient temperature : -20° ~ +60°
Scanner weight : 105kg
Scanner size : L1100 x W280 H234mm (including underground protection devices)
