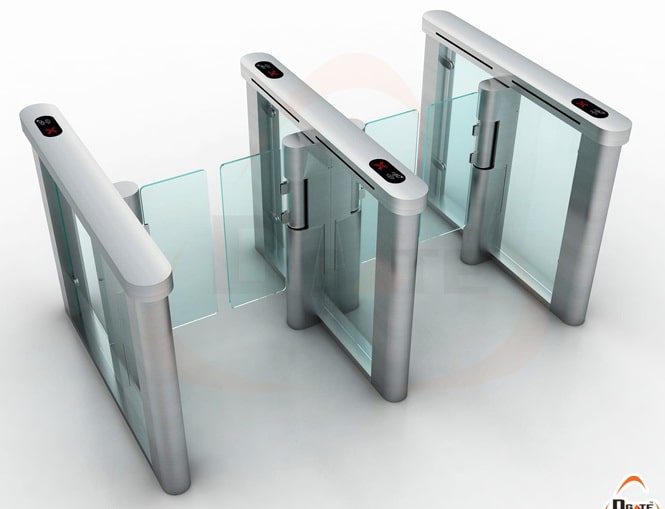

TS-H8008-4:Swing Gate

-Framework:304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
-Finish : brushed surface, polishing surface
-Shell's size (L*W*H): 1600mm*160mm*1000mm (default)
-Swing arm material: Tempered glass or Acrylic (optional)
-Stretching out swing length: 260mm~600mm
-Power voltage: AC220V±10%, 50Hz±10%
-Driver motor: DC36 servo motor
-Main-board voltage: 12V DC
-In-built Infrared: 6 pairs/passageway
-Passing speed in normally open mode: 50 persons/min
-Passing speed in normally closed mode: 40 persons/min
-Passage Width: 600mm ~1200mm

*One Movement ต่อคู่ / Two Movement ต่อเครื่อง
