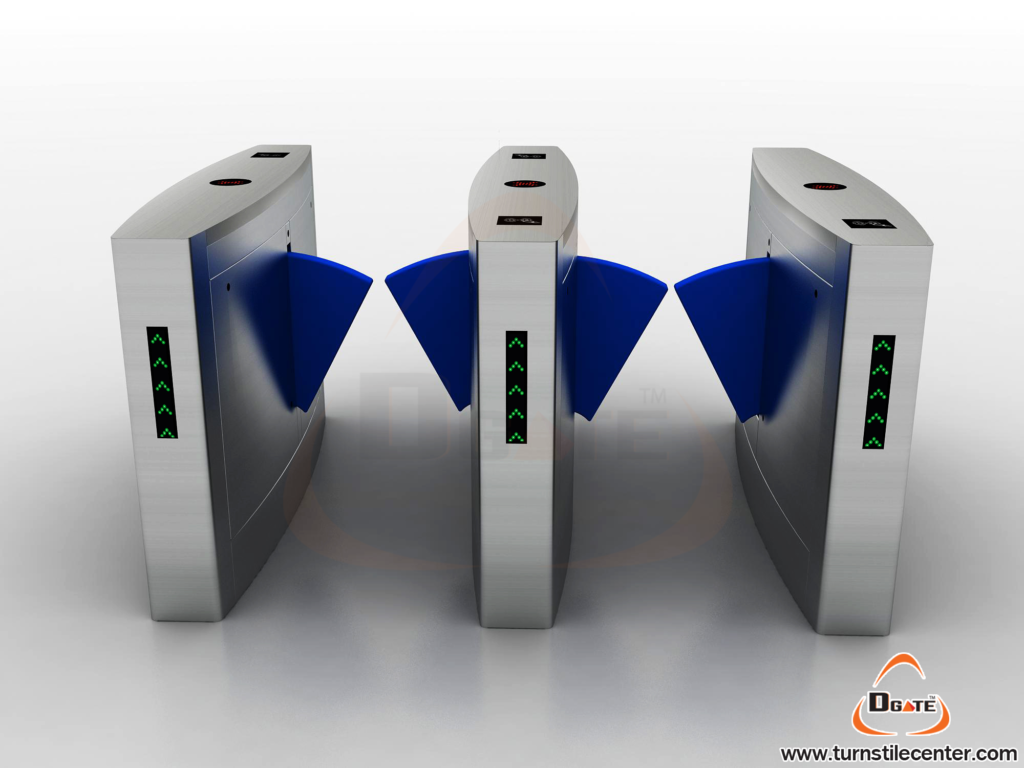

ประตูปีกผีเสื้อ

-Framework : 304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)
-Thickness of ply :1.7mm
-Finish: brushed surface, polishing surface or anti-fingerprint surface (optional);
-Size (L*W*H):1500mm*300mm*990mm
-Material of flap:different color Acrylic flap available or Red Soft flapper optional
-Stretching-out flap length:230~235mm
-Machine center:Germany technological motor
-Driver motor: DC Brush motor
-Main-board voltage:12V DC
-In-built Infrared:5 pairs/lane
-Passing speed:30 persons/min
-Passage Width:550mm
-Opening / closing time: 0.6 seconds
-The time required to running state after power on:3 seconds
-Automatic reset time after the failure:10 seconds
-Mean time to failure:min. 5 000 000
-Working Environment : Indoor/Outdoor (with rain-tent cover)
