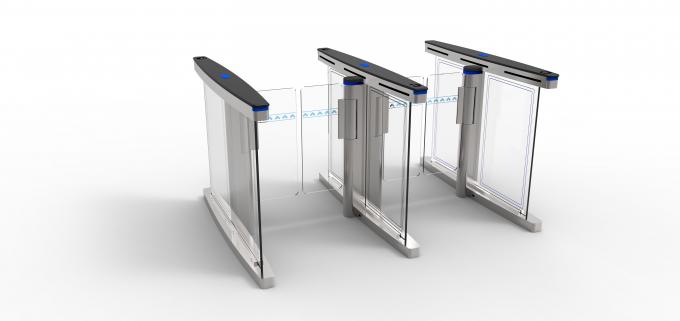

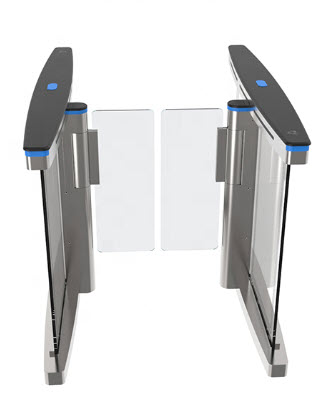

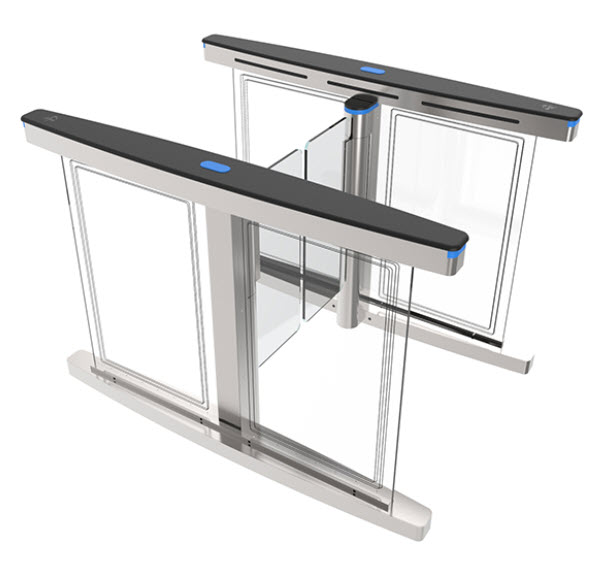

  • TS-TB323-O:Swing Gate (One Movement)

    • TS-TB323-O:Swing Gate (One Movement)

    Add to Cart
    Related Documents:


    -Size 1400x150x980mm
    -Material 2.0mm imported SUS Polish 400# Snow line+Top Cover:12 man made marble+Filling -Panel:10mm Acrylic with Led light bar
    -Arm material 10mm Acrylic
    -Pass Width 600mm
    -Passage direction Single directional/Bi-directional
    -Pass rate 30-35 persons/minute
    -Operating time 0.2 seconds
    -Power input AC100-240V,50/60HZ
    -Working voltage 24V
    -Working humidity 30%~95%
    -Working temperature -40℃~+70℃
    -Working environment Indoor
    -Communication interface RS485, TCP/IP, Dry contact
    -Mechanism Germany DC Brushed motor+Clutch
    -Infrared sensor 6 pairs
    -MCBF 5,000,000 Cycles
    -Application Airports, Hotels, Governemnt Halls, etc
