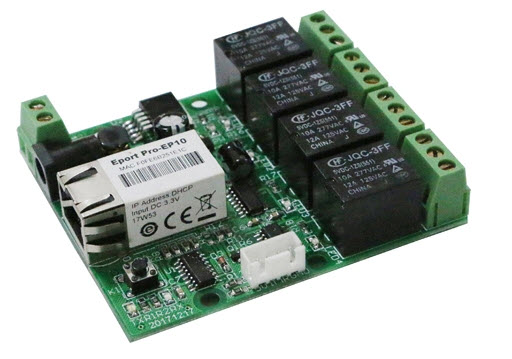

TCP Relay output 4Ch
-Size: 80*68MM (can be change if request)
-Weight: about 85G
-Working voltage: 12VDC/1A
-Static working current :< 30MA
-Dynamic current :< 180MA when all relay are closed.
-Output: 4 relay, independently from device
-Relay contact capacity: 277V/AC/10A;125V/AC/12A
-Communication method: TCP/IP optional
-Baud rate: 9600bps (default), can set by computer (19200\38400\57600\115200BPS)
-Address ID: 1 (default), can set by computer (1 to 254)
