BEA C8 / BEA ZENSAFE Automatic Sliding Door Opening & Safety Sensor (Microwave Radar Activation & Active Infrared Safety Dual Mode Combination Sensor)

In commercial automatic entrance sensing solutions, sliding door sensors are mostly necessary for all types of automated single or double sliding doors, glass doors, aluminum sliding doors. Photocell doors and electric sliding doors are widely used in so many public buildings, like airports, hospitals, administrative buildings, shop fronts, and museums…., they ensure the convenience and safety of pedestrian moving in, out, and through a building. By detecting the motion of people approaching the entrance or people’s presence near the door, this smart BEA C8 / BEA ZENSAFE motion detector triggers the door’s opening and function as a safety sensor to improve the pedestrian experience of using sliding doors and avoid unnecessary accidents.

SPECIFICATION

• Supply voltage: 12V-24V AC +/-10%, 12V-30V DC 0%/+10%
• Power consumption: <3W
• Mounting height: 1.8m – 3.0m
• Temperature range: -25°C – +55°C
• Degree of protection: IP54

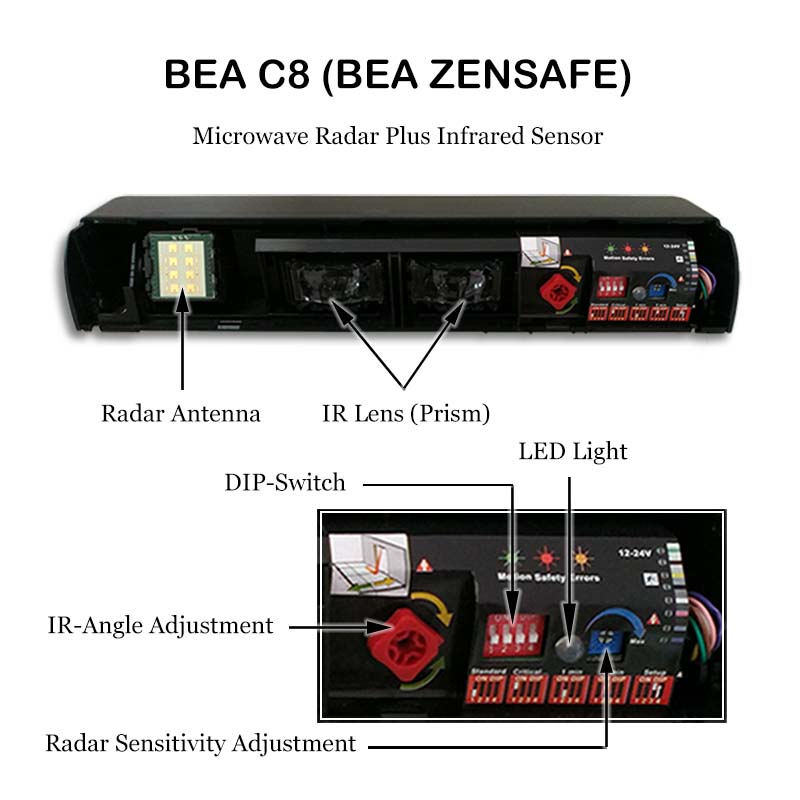

Microwave doppler radar and active infrared with background analysis dual modes combination BEA C8 / BEA ZENSAFE sensors come with both unidirectional radar technology for smooth energy-efficient door activation and monitored active infrared technology to secure the threshold area.



With this combined function of opening activation and protecting users from being clamped by door panels when automatic door closing, no need to install a safety beam sensor on the door frame other than a radar sensor on the top.
