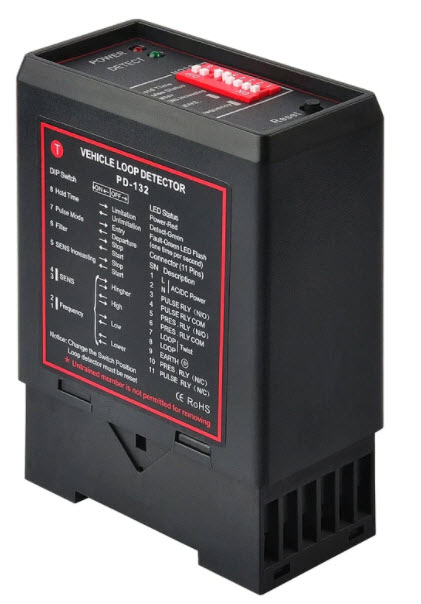

CP-LOOP2:เซนเซอร์แบบ Loop กันไม้ตีรถ สีดำ ปรับละเอียด
-Voltage tolerance AC: +10% / -15%
-Voltage tolerance DC: ±15%
-Power Consumption: 4.5VA
-Output relays: 240V/5A
-Operating temperature: -20°C to +65°C
-Storage temperature: -40°C to +85°C
-Frequency range: 20 kHz to 170 kHz
-Reaction time: 10ms
-Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
-Sensitivity: Adjustable in 4 increments
-Loop inductance: Total loop plus connection wiring: 50μH to 1000μH.Ideal is 100μH to 300μH
-Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
-Size of Housing: 78x40x108 mm (L x W x H)
