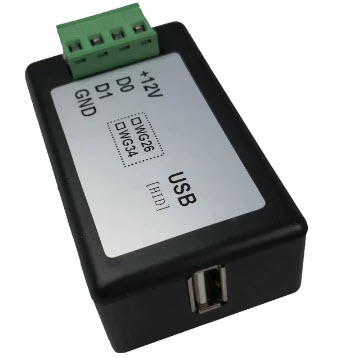

CVT-WG<>USB:Wiegand To USB

-ASCII (decimal number) output modes (default):
USB-WG-D26 USB to WG 26bit (8 digit decimal numbers)
USB-WG-D34 USB to WG 34bit (10 digit decimal numbers)
-Hex output modes (optional):
USB-WG-H26 USB to WG 26bit (3 byte hex number)
USB-WG-H34 USB to WG 34bit (4 byte hex number)
-Size: 75mm x 41mm x 30mm
-Net Weight: about 35g
-Operating voltage: DC 5V (can get power from USB/HID port direct) for USB and DC12V for Wiegand
-Consumption current, not more than 30mA
-Transmit distance between converter and device:
-USB: max 5m
-Wiegand: max 100m
-Compatible with USB HID (Human Interface Device) standards, and based on a passive transfer, that means the converter send Wiegand output only host send data to its USB interface, and once it get once it send out.
