  • DT-WL01:อุปกรณ์รับส่งสัญญาณ Wireless P2P

    • DT-WL01:อุปกรณ์รับส่งสัญญาณ Wireless P2P

    Add to Cart

    -1*10/100Mbps WAN Port,
    -1*10/100Mbps LAN Port（By connecting to a wireless network, the Wifi speed can reach 900 Mbps; if you connect to a wired network through a LAN port, the network speed will be below 100 Mbps）
    -1 * Switch to operate the operation mode (Right is AP mode, Left is Repeater mode)
    -1 * Reset button
    -FLASH * DDR2: FLASH 8MB * DDR2 64MB
    -Waterproof Level:IP65
    -Wireless security: OPEN、WPA、WPA2、WPA-PSK、WPA2-PSK
    -ตัวรับและส่ง อย่างละ 1 ตัว
    -ไม่รวมเสา และขาจับ

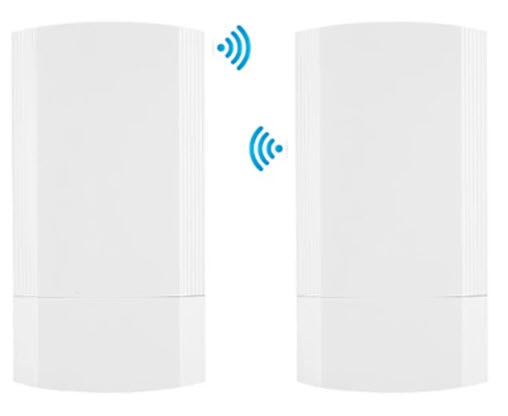

    ชุดส่งสัญญาณ wireless แบบ Point 2 Point (P2P)

    -สามารถรองรับการเชื่อมต่อแบบ TCP/IP

    -มีรุ่น ระยะส่งไกลให้เลือก รองรับการับส่งได้ไกล ถึง  20KM.  (Optional ขึ้นอยู่กับสภาพแวดล้อม)

    Odoo image and text block
    Odoo image and text block
    Odoo image and text block
    Odoo image and text block
    Odoo image and text block
    Odoo image and text block

    Features

    1-3KM distance ,it mean point to point

        The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach 1-3KM,but please understand.


    1.This cpe router produce 5.8G900Mbps, Long Range WiFi Extender Outdoor Wireless Bridge CPE with LED display to configure the PT/PTMP connection

    2.Build in 12dBi MIMO panel antenna(embedded) ,High Gain Antenna for More Range

    3.CPE200 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, ESD protection and surge protection, ideal for outdoor use

    4.Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃

    5.Multi-Mode

    - Support Wireless AP, Repeater operation mode

    - Support SSID broadcasting, Multi SSID up to 4

    - Support DHCP serverNetwork Security

    6.Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security

    7.Users Max: 64, Recommand: 30

    8.Transmit power: 19±2dBm

    Applications Case

    I was looking for a wireless bridge to bring internet connection to my backhouse about 500 feet from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need. Will look to see if the bridge can be connected wirelessly to the hub in the main house.
