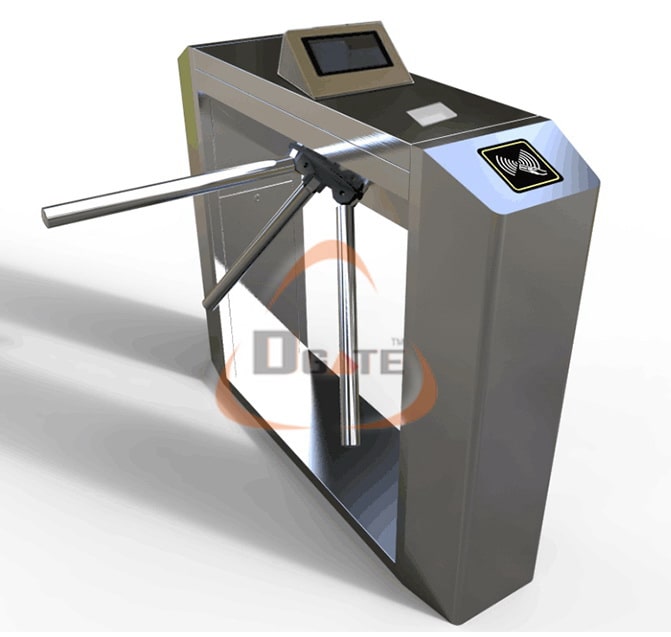

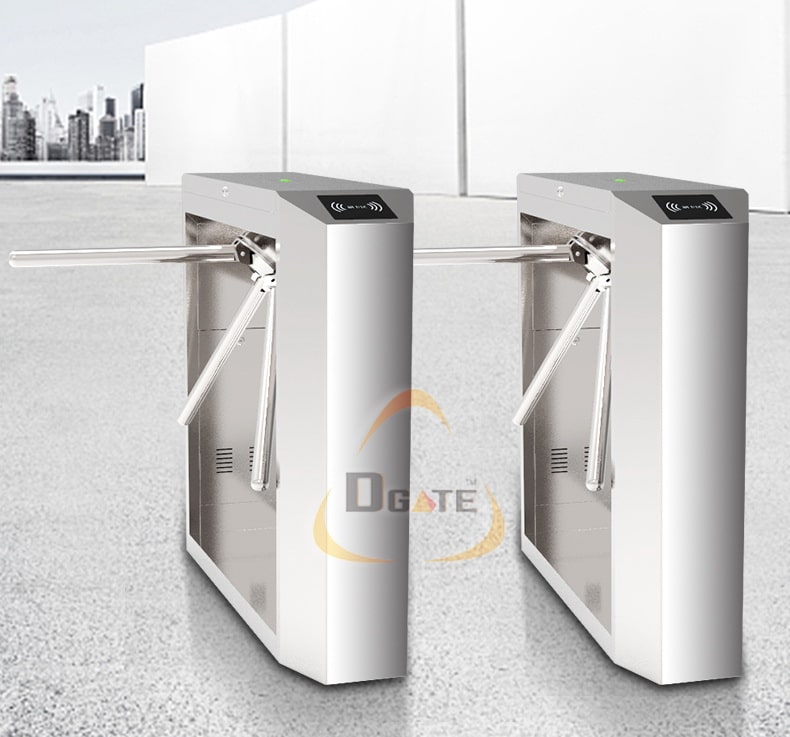

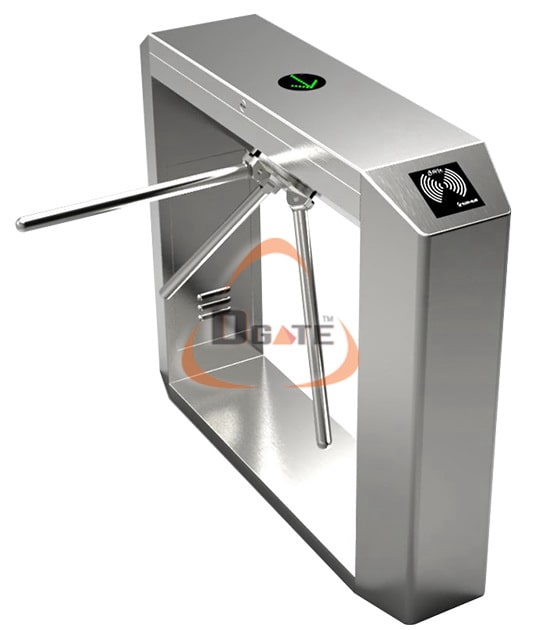

TS-B210E:เครื่องกั้นสามขา Tripod Turnstile (ไฟฟ้า)


Related Documents:

TS-B210-datasheet.pdf


- Material: 304 stainless steel Specification:1200*280*980 mm
- Work voltage: AC220V±10% 50HZ±10%
- Core: DC24V solenoid valve
- Size:1200*280*980 mm
- Arm length:500 mm
- Max bearing force :80 kg
- Max lane width:550 mm
- Rotation direction for arm:left or right, or bi-directional
- Operating temperature: indoor or outdoor, 10℃~70℃
- Relative humidity: :≤90%, no condensation
- Barrier open time:0.2s
- Transit speed:30~40 people/minute
- Emergency :auto drop for arm
- Normal work life:3,000,000 times
-ไม่รวมราวสแตนเลส
