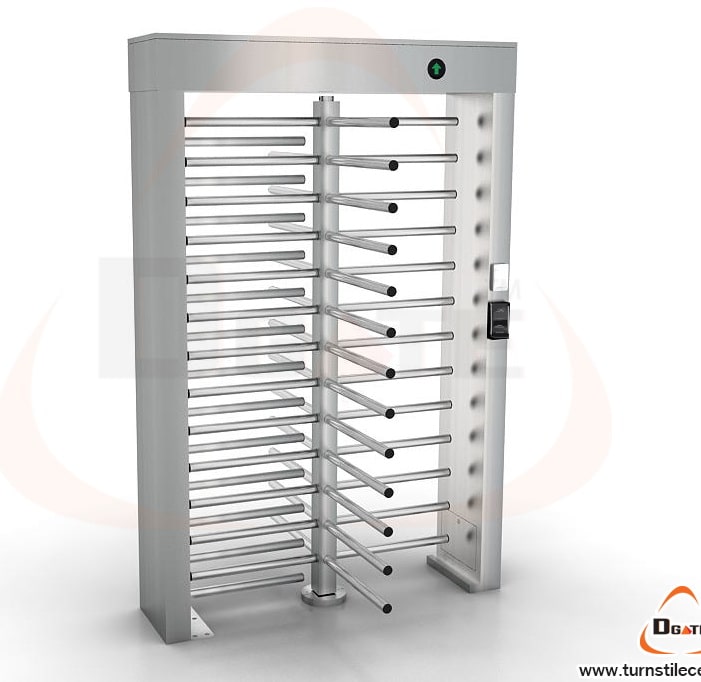

TS-FH8:Full Height Turnstile

-Framework: 304# Stainless Steel
-Finish: Brushed surface / Polished surface / Anti-Fingerprints surface
-Shell’ size: L1500mm*W1350mm*H2200mm (Standard)
-The inductive card reader dimension: equipped with the standard mounting brackets, or tailor.
-Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. -There is an output to interlock the card.
-Operation voltage: AC220V±10% 50Hz±10%
-Time of opening / closing: 0.2s
-Time to work after power on: 3s
-Reset time after breaking down: 10s
-Transit speed: 30 persons/minute
-MTBF: >5 million
-Communications Interface: RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
-Input interface: relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
-Relative humidity: ≤90% Non-condensing
-Working Environment: -10℃ ~ 70℃, Indoor / Outdoor
