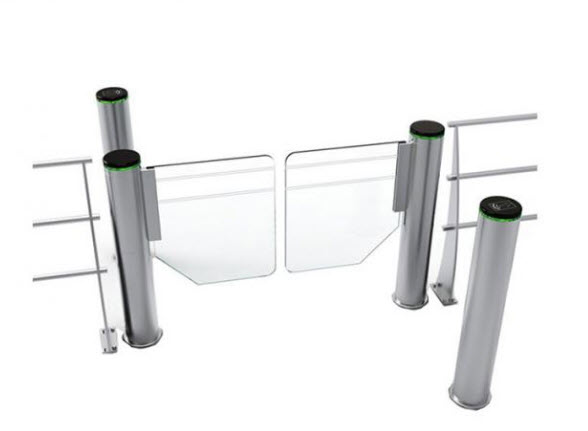

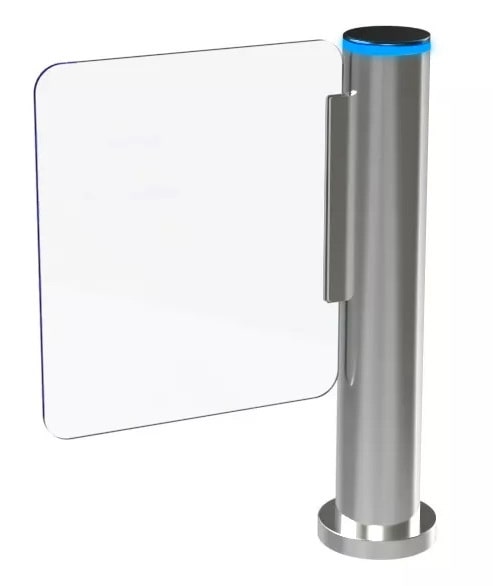

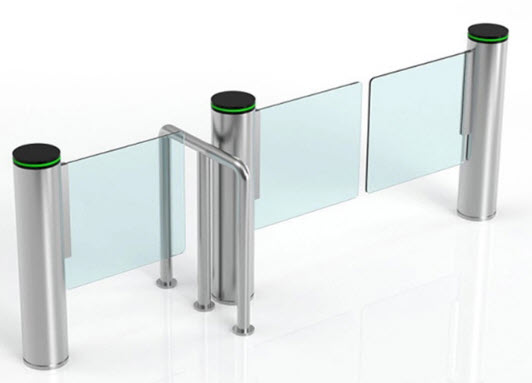

TS-TB315:Swing Gate
Related Documents:

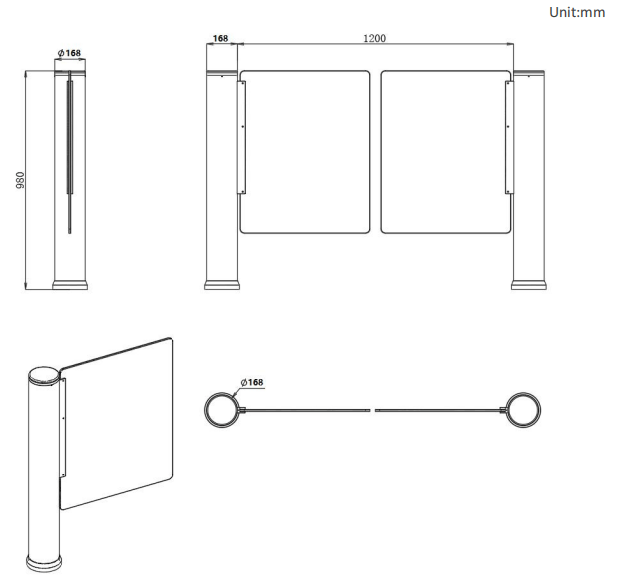

-Size:480x280x980mm
-Material: 1.2mm 304 SUS Hairline #400
-Arm material: 0.8mm
-Pass Width: 600mm
-Passage: direction Single directional/Bi-directional
-Pass rate: 30-35 persons/minute
-Operating time: 0.2 seconds
-Power input: AC100-240V,50/60HZ
-Working voltage: 24V
-Working humidity: 30%~95%
-Working temperature: -40℃~+70℃
-Working environment: Indoor
-Communication interface: RS485, Dry contact
-Mechanism: Germany DC Brushed motor+Clutch
-Infrared sensor: N/A
-MCBF: 5,000,000 Cycles
-Application: Airports, Hotels, Governement Halls, etc
.
