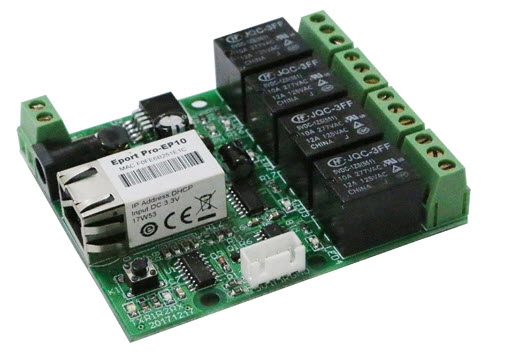

  • CVT-ETH-RL01:TCP Relay output 4Ch

    • CVT-ETH-RL01:TCP Relay output 4Ch

    Add to Cart

    -Size: 80*68MM (can be change if request)
    -Weight: about 85G
    -Working voltage: 12VDC/1A
    -Static working current :< 30MA
    -Dynamic current :< 180MA when all relay are closed.
    -Output: 4 relay, independently from device
    -Relay contact capacity: 277V/AC/10A;125V/AC/12A
    -Communication method: TCP/IP optional
    -Baud rate: 9600bps (default), can set by computer (19200\38400\57600\115200BPS)
    -Address ID: 1 (default), can set by computer (1 to 254)
