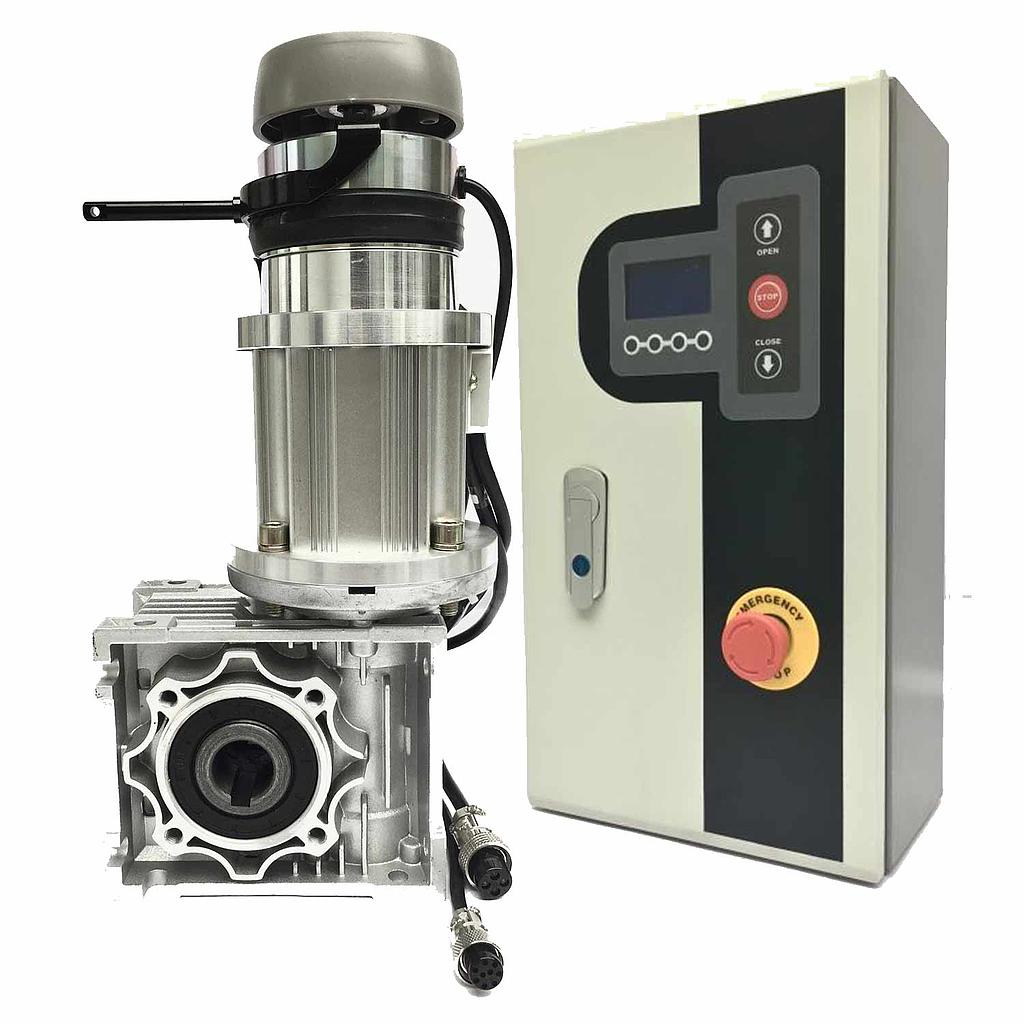

PVC-Servo-01:Motor and Control,0.75KW 220V

Servomotor
Rated Powever : 750W
Speed :2,000 rpm
Rated Torque : 50 Nm
Motor Thermal Rise ＜30℃
Working Temperature -35℃-60℃
Torque Management System Automatic Torque
Maximum Door Size ＜16 ㎡
Limit Switch Absolute Encoder
Self Locking Electro Mechanical Brake
Manual Release Hand Crank
Weight 10 KG

Controler
Rated Power Supply AC 220±10％
Rated Voltage 220 v
Speed Control Closed Loop Speed Contrlol
Position Control Closed Loop Position Control
Protective Function Over-current Protection, Over-voltage Protection Under-voltage
Protection, Overheating Protection and Overloading Protection
Installation Site Indoor, away form direct sunlight, dust, corrosive gas, oil and
water vapor ect.
Operating Temperature
Range
-35℃~60℃
Weight 7.5 KG
Installation Method Wall Mounted
