SE-SE3307:Walk Through Metal Detector ตรวจจับโลหะ
Related Documents:
SE3307 Walk Through Metal Detector Specification.pdf
- Detecting Zones 33
- Display 7-inch LCD touch screen
- Channel Size 2010(H)x760(W)mm
- Sensitivity grade 1000
- Pass through rate 60 people/min
- Security Programs 60
- Optional network/turnstile connection
- Certificates ISO9001,ISO4001,CE,RoHS,OHSAS18001

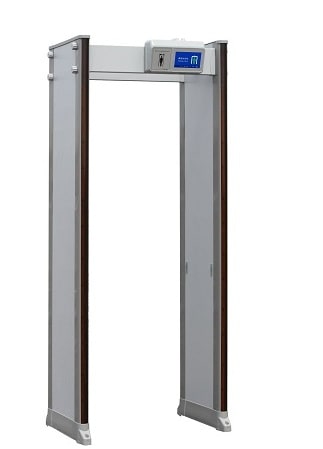

33Zone WalkThrough Metal Detector is our developed as one of our high-end models.
Boasts 33 zones and features touch screen control. It is capable of detecting various metals including ferrous metal, tin, and aluminum.
Developed as one of our high-end models. As a Walk Through Metal Detector Gate, Walk Through Detector, Metal Detector Gate, Walk Through Gate, or Arch Metal Detector, boasts 33 zones and features touch screen control. It is capable of detecting various metals including ferrous metal, tin, and aluminum. Primarily used for identifying potentially dangerous metal objects such as knives or handguns, it offers advanced security screening capabilities.
Safeagle Walk Through Metal Detector adopts a mini controller, which is more convenient for maintenance and installation. Meets international regulatory requirements for electromagnetic safety. Successfully achieved completely harmless to pregnancy, patients, and medical equipment.

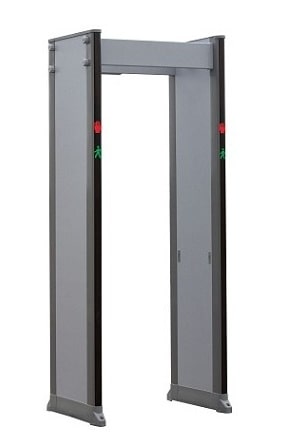

Audible alarm and visual LED lights signal when a target has been detected. Provide the ability to alarm on a selected range of tone intensity levels randomly. The wide volume control dynamic allows operation even in a noisy environment
GENERAL SPECIFICATIONS
- Detecting Zones: 33/60(Optional)
- Sensitivity: 1000levels
- Each zone sensitivity level: 400 (Adjustable)

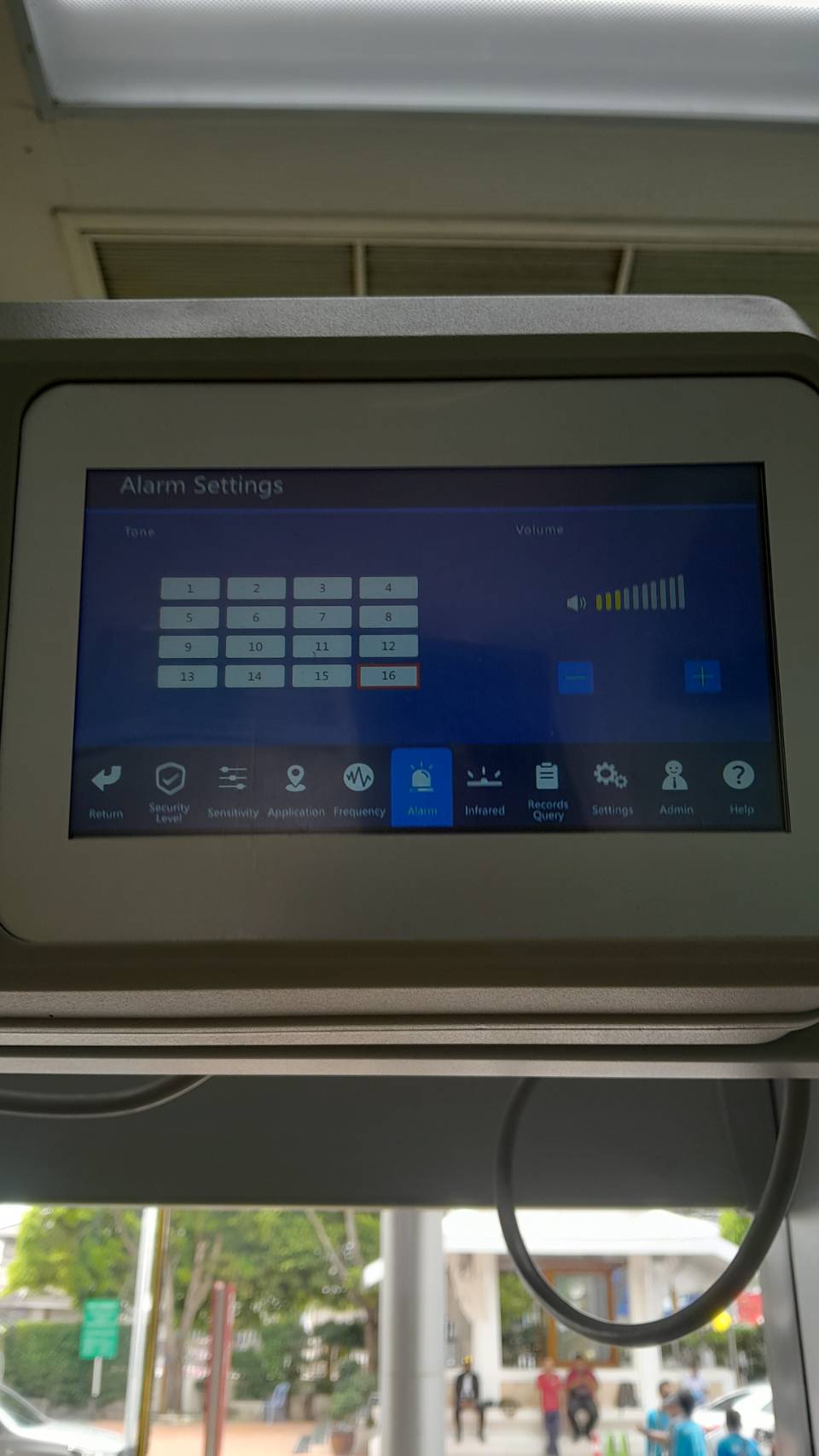

- Display: LCD resistive touch screen
- Power consumption: <20 W
Installation Environment
- Vertical Channel Size: 2010(H) x 760(W)mm
- Vertical Dimension: 2210(H) x 880(W) x 670(D)mm
- Working Voltage: AC 220V, 50~60 Hz
- Working Environment Temperature:-20℃-+45℃
- Pass-through rate: Over 60 people per minute
