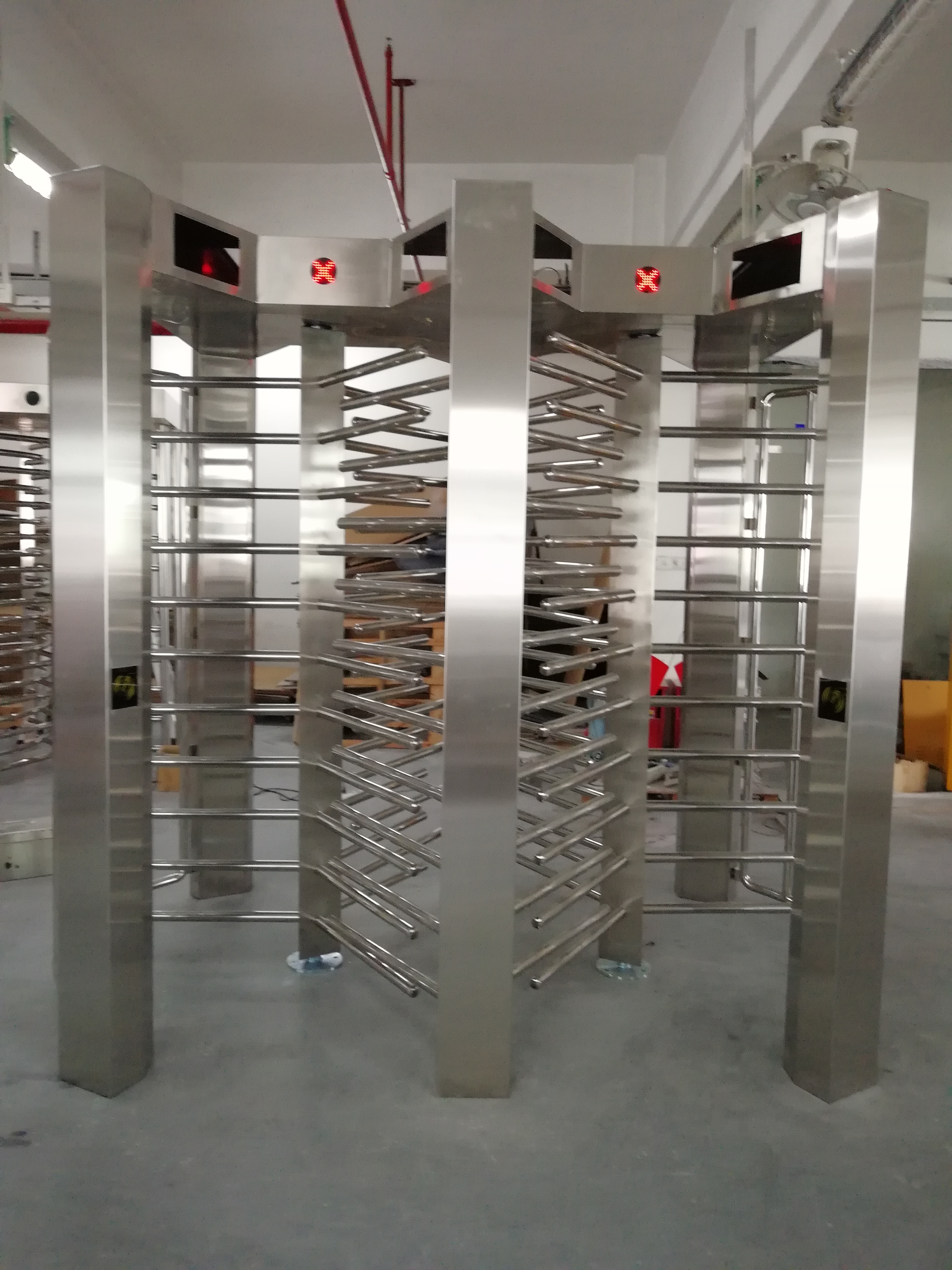

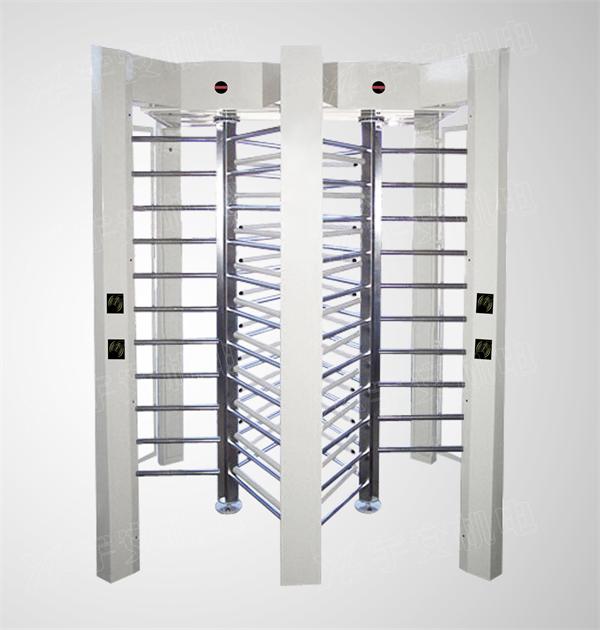

TS-FH5:Full Height Turnstile
Related Documents:
-Housing material :stainless steel/Cold rolling iron
-Surface finishing:Brushed surface(standard)/Polishing surface
-Dimension:L2800*W1813*H2400mm
-Net weight:650Kg
-Max tolerance of arm:30Kg
-Driving force of arm:3Kg
-Power:DC 24V
-Operation current :3A/5A(Max)
-Voltage:AC85-250V
-Frenquency:50/60Hz
-Communication interface:RS485
-Input interface:Dry contact signal/12V level signal/DC 12V pulse signal
-Normal life-span:3 million times
-Transit speed:40 persons/min
-Working environment:Indoor/outdoor(with a shelter)
-Working temperature:-20℃to 50℃
-Relative humidity:≤90% no condensation
