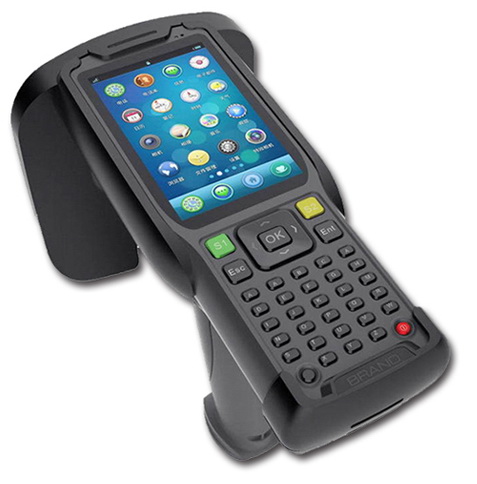

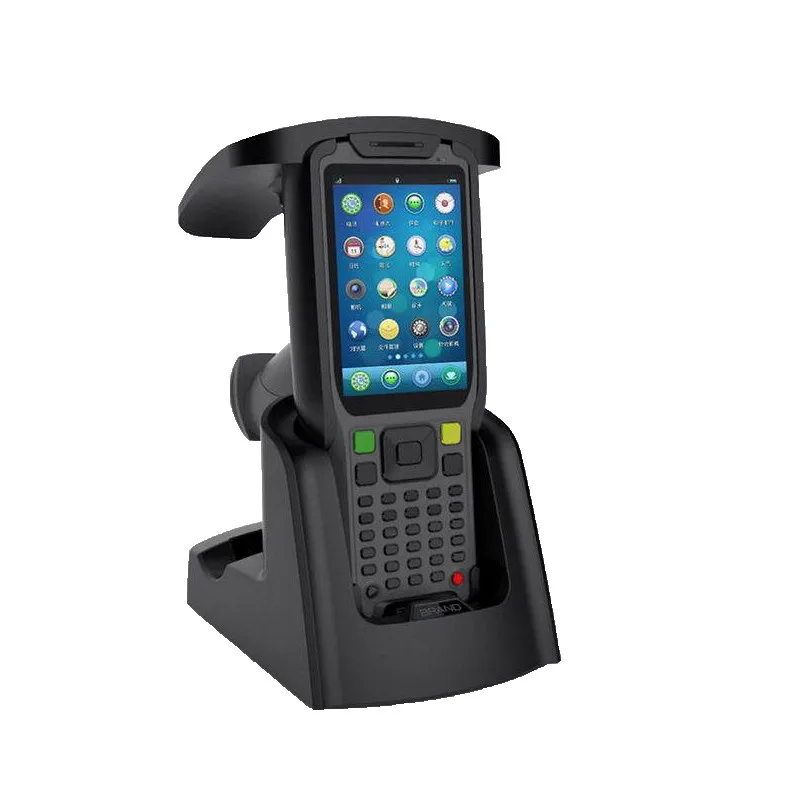

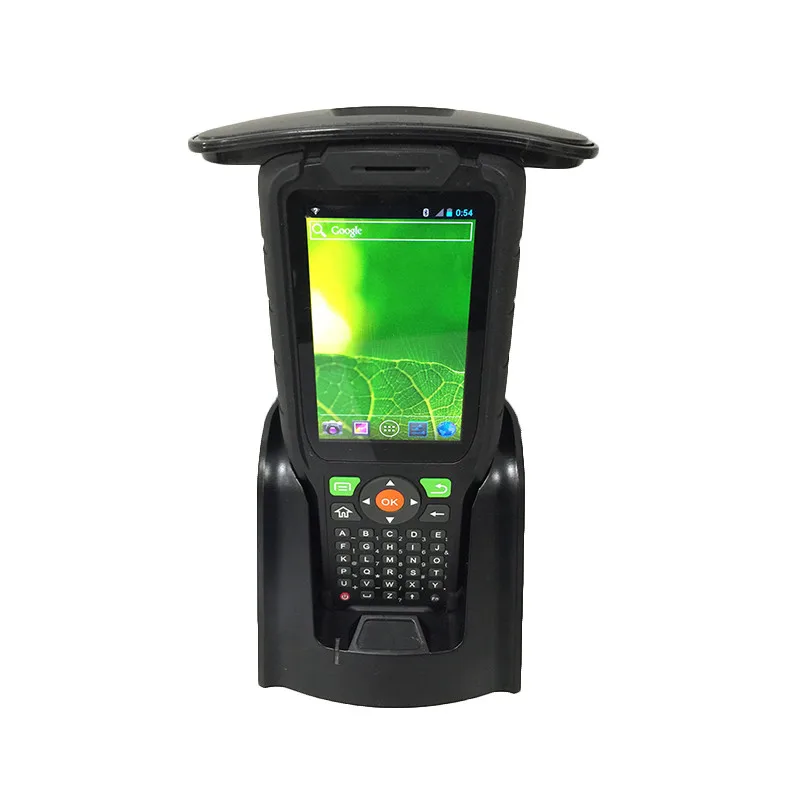

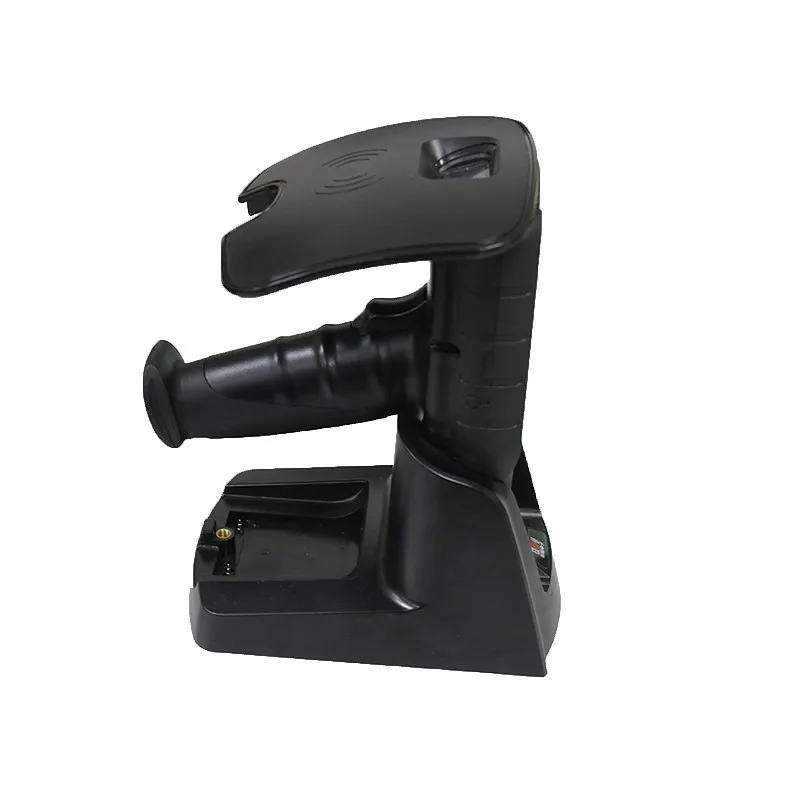

RFID-UHF-RD01:handheld UHF rfid reader

Features

Compact and portable, physical and virtual keyboards and flexible configuration
Android 5.1 system, quad-core high-speed processor
RFID frequency optional
Diversified wireless communication
Powerful bar code scanning function optional

Application

Container management, warehouse inventory management, cargo transfer tracking and so on
Production automation, parts and components management
Ticket and staff card identification
Patrol, asset management etc

Basic Parameters
Size	170mm×85mm×23mm/ 6.69×3.35×0.91in
Weight	About 380g
Display	5-inch IPS HD screen, resolution 720 × 1280
Touch Screen	Industrial multi-touch capacitive screen
Expansion slot	1SIM, 2 PSAM/1 MicroSD(TF)
Communication Interface	USB2.0 interface, 3.5 plug charging interface
Audio	Voice broadcast
Indicator light	Network indicator, charging indicator
Key	Scan key, function key
Camera (Optional)	8-megapixel rear camera with flash and autofocus function
Flashlight	Low power LED lighting, used in emergency
GPS	Built-in GPS global positioning system, range error ± 5m
Performance Parameters
CPU	Quad-core 64-bit Cortex-A53
Memory	RAM: 2GB, ROM:16GB
System	Android 5.1.1
Extended memory	Supports up to 32G MicroSD card
Data Communication
4G	TDD-LTE Band 38/39/40; FDD-LTE Band 1, 2, 3, 4, 7
3G	WCDMA(850/1900/2100MHz)
WIFI	2.4G/5G. comply with IEEE 802.11a/b/g/n
Bluetooth	Bluetooth4.0
Barcode Scanning (Optional)
1D Barcode	Scanning module: Honeywell N431X/ others Code 39, Code 93, Code128, Codebar, EAN-13, EAN- 8, UPC- A, UPC- E, ITF14, UCC/EAN- 128, ITF25, Matrix 25, EAN- 128, ISBNetc
2D Barcode	Scanning module: Honeywell-6603/NLS-EM3396/NLS-EM3296 PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc
Biological Identification (Optional)
Module function	Enrollment, compare and deletion etc
Sensor	TCS1Biological fingerprints /FBI certificated
Sensor Type	Inductive capacitance
Image Size	256×360 pixel
Resolution	500DPI
Storage Memory	1000 fingerprints
