  • USR-TCP232:ตัวแปลง RS232<>LAN

    • USR-TCP232:ตัวแปลง RS232<>LAN

    Add to Cart

    -Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
    -Support DNS function
    -Set parameters through webpage
    -Upgrade firmware via network
    -Auto-MDI/MDIX, RJ45 port with 10/100Mbps
    -Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
    -Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
    -Support virtual serial port and provide corresponding software USR-VCOM
    -Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
    -User-defined registration package mechanism, check connection status and use as custom packet header
    -Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
    -The global unique MAC address bought from IEEE, user can define MAC address
    -Restore factory default
    -Across the gateway, switches, routers
    -Can work in LAN, also can work in the Internet (external network)
    -Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS

    Product description

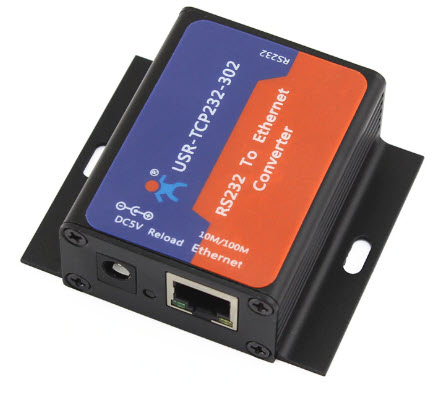

    The RS232 to Ethernet Converters, used for data transparent transmission. USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet. USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.



    Function and Feature

    • Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
    • Support DNS function
    • Set parameters through webpage
    • Upgrade firmware via network
    • Auto-MDI/MDIX, RJ45 port with 10/100Mbps
    • Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
    • Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
    • Support virtual serial port and provide corresponding software USR-VCOM
    • Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
    • User-defined registration package mechanism, check connection status and use as custom packet header
    • Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
    • The global unique MAC address bought from IEEE, user can define MAC address
    • Restore factory default
    • Across the gateway, switches, routers
    • Can work in LAN, also can work in the Internet (external network)
    • Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
    • Support customization



    Application

    • Industrial data transmission, industrial automation
    • security and protection monitoring, public security
    • Smart home, power control, environmental monitoring, intelligent agriculture
    • Door check on work attendance system, POS system, rice selling system
    • Building automation system, power monitoring, self-service banking system, telecom machine room monitoring



    System Information
    ProcessorARM
    Ethernet
    Port Number1
    Interface StandardRJ45
    Rate10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
    Protection2KV electromagnetism isolation, shell insulation blocking
    Network ProtocolIP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
    BufferSend: 6K bytes, receive: 4K bytes
    Serial
    Port Number1
    Interface StandardRS-232: DB9 cellular type
    Data Bits5, 6, 7, 8
    Stop Bit1, 2
    Check BitNone, Even, Odd, Space, Mark
    Baud Rate600 bps ~ 230.4 Kbps
    Flow ControlNull
    BufferReceive: 800 bytes
    Software
    Virtual Serial（USR-VCOM）Windows 2000 or higher (32 bit/64 bit)
    ConfigurationComputer set-up software, serial command, built-in webpage
    Basic Parameter
    Size71 x 60 x 25 mm
    Operating Temp.-25 ~ 75°C
    Storage Temp.-40 ~ 105°C, 5 ~ 95% RH
    Input VoltageDC 4.75 ~ 7V
    Working Current150mA @ 5V
    Power<1W
    More
    Warranty2 years
    Accessory5V1A power supply
    CertificateCE/FCC



    Download

    ​ Application Software

    ​Development File

    ​User Manual

    ​Company File





    Features of RS232 to Ethernet Converters: small size, installed easily.
    Basic Function of serial to ethernet converterUSR-TCP232-302

    Basic Function

    serial to ethernet converter USR-TCP232-302: RS232 to Ethernet
    Serial RS232 RS485 RS422 Ethernet converter USR-TCP232-302

    Function Diagram

    Work mode: TCP Server mode of Serial to Ethernet converter USR-TCP232-302

    Work mode

    TCP Server

    Serial device server monitors the set port and waits for a TCP client connection.
    Data from the serial device will transmit to all successfully-connected via serial device server.

    Work mode: TCP Client mode of of Serial to Ethernet converter USR-TCP232-302

    TCP client mode

    Serial device server will initiate TCP connection to the destination IP address that configured by the user
    and serial device server will continuously try to reconnect if establishing TCP connection unsuccessfully.
    If the serial device server establishes TCP connection to TCP Server successfully, it can realize
    bidirectional data transparent transmission between TCP Server and the serial device.

    Work mode: UDP Client of of Serial to Ethernet converter USR-TCP232-302

    UDP mode

    Serial device server will transmit serial data from serial device to target network device by UDP connection.
    Serial device server will listen to port and transmit all received data to serial device.

    Work mode: HTTPD Client mode of of Serial to Ethernet converter USR-TCP232-306

    HTTPD Client

    Supports HTTP Client mode which can transmit serial data to the HTTP server in HTTP format(GET/POST).

    Serial to Ethernet converter USR-TCP232-306: Virtual Com Software

    Virtual Com Software

    Serial to Ethernet converter USR-TCP232-306: Synchronous Baud Rate

    Synchronous Baud Rate

    Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.

    Serial to Ethernet converter USR-TCP232-302: Identity packet function

    Identity packet function

    When 302 works as TCP Client, it can send identity packet to TCP server which can be identification.
    Identity packet can be IMEI code, ICCID code and user editable identity packet.

    Serial to Ethernet converter USR-TCP232-302: Synchronous Baud Rate

    Serial & Network Heartbeat Packet

    Serial server maintains the normal connection with the server by sending heartbeat packet regularly.

    Application Field of RS485 serial device server: Unattended Weighing

    Application

    [ Unattended Weighing ]

    Connect serial to ethernet converter USR-TCP232-306 to barrier gate and it can realize remote control of
    barrier gate by Ethernet in control center.

    Application Field of RS485 serial device server: access control system
    Application Field of RS485 serial device server: Traffic Lights Management System

    [ Traffic Lights Management System ]

    Connect serial device server USR-TCP232-306 and it can realize traffic data acquisition and processing by Ethernet in control center.
    It can also provide accurate quantitative basis for traffic dispatch management and urban transport planning
    Can implement the optimum control for transportation phenomena such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.

    Application Field of RS485 serial device server: electric power
