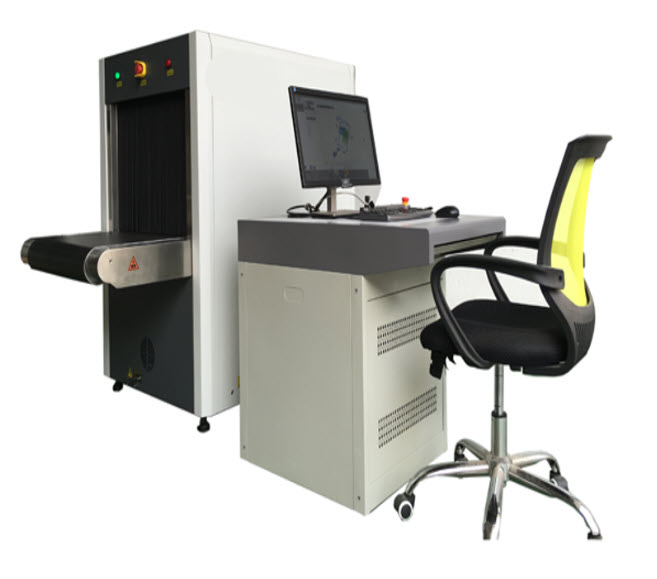

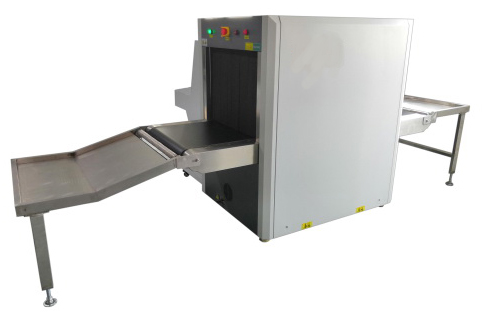

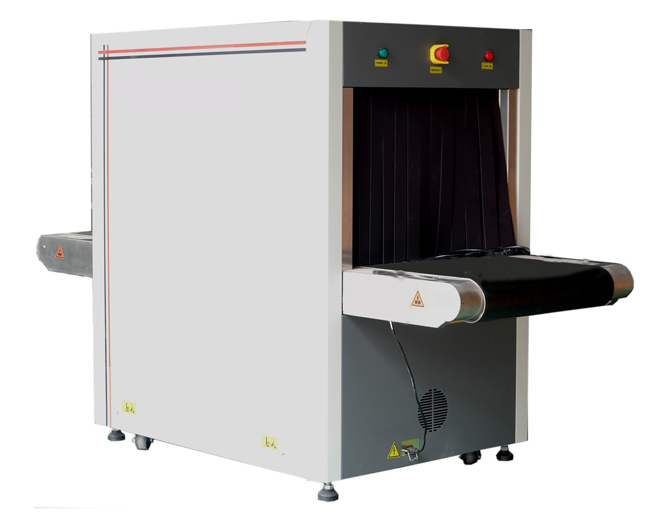

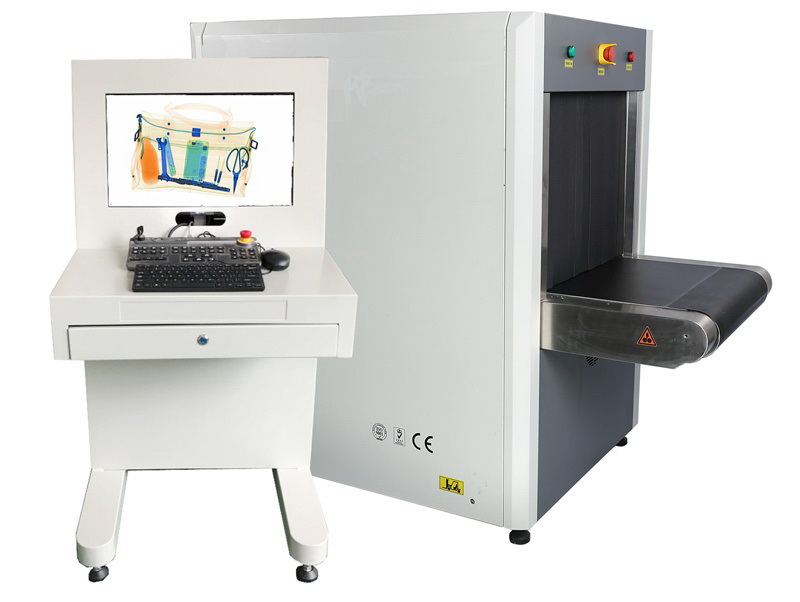

SE-SPX6550:X Ray Baggage Scanner

-Tunnel Size 650(W)*500(H)mm
-Conveyor Speed 0.22m/s
-Conveyor Max Load 170kg
-Dose per Inspection <2.9μ Gy/h
-Resolution <0.101mm Metal Wire
-Spatial resolution Level: Dia1.0mm, Vertical: Dia1.3mm
-Penetrate resolution Dia 0.511mm
-Penetration 30-32mm steel
-Film Safety Guarantee ISO1600 Film
-X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)

-Image System :

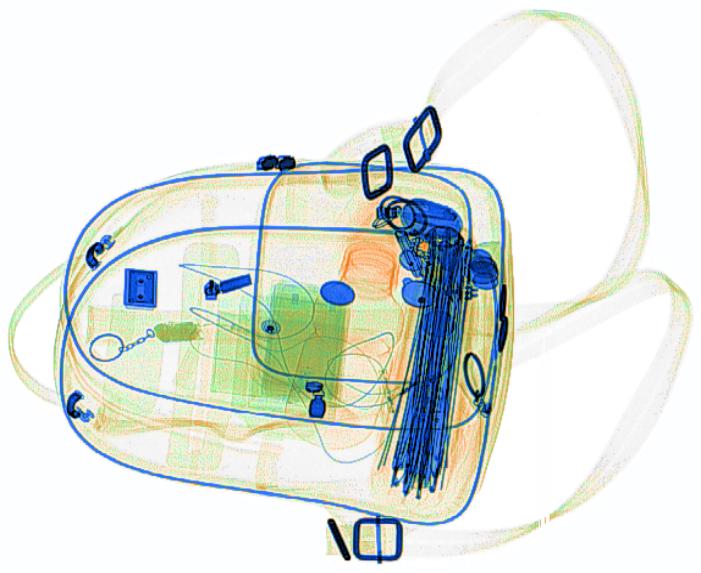

Technical Principle Dual-energy X-ray Imaging; L Shaped Array
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)
Monitor High Resolution Color, LCD Accord, 17inch
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of
threats and contrabands
Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and
converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training,etc
Network Applications Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536

-Operating Environment:
Operation temperature/Humidity 0ºC-40ºC/10%-95%(non-condensing)
Storage Temperature/Humidity -20ºCto 60ºC/ 5%-95%(non-condensing)
Operation Power 220VAC(±10%)50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption 1.0KW (max), 0.3KW(working)
Noise <58db
Scanner Dimensions (L×W×H) 2200mm x918mm x1442mm
Gross Weight 700kgs

-X-ray Generator:
Anode Voltage 140kv
Anode Power 0.35 MA
Generate angle 80 degree upward
Brand Chinese Brand
Generate direct from bottom to top
Cooling / Duty Cycle Oil Cooling /100
