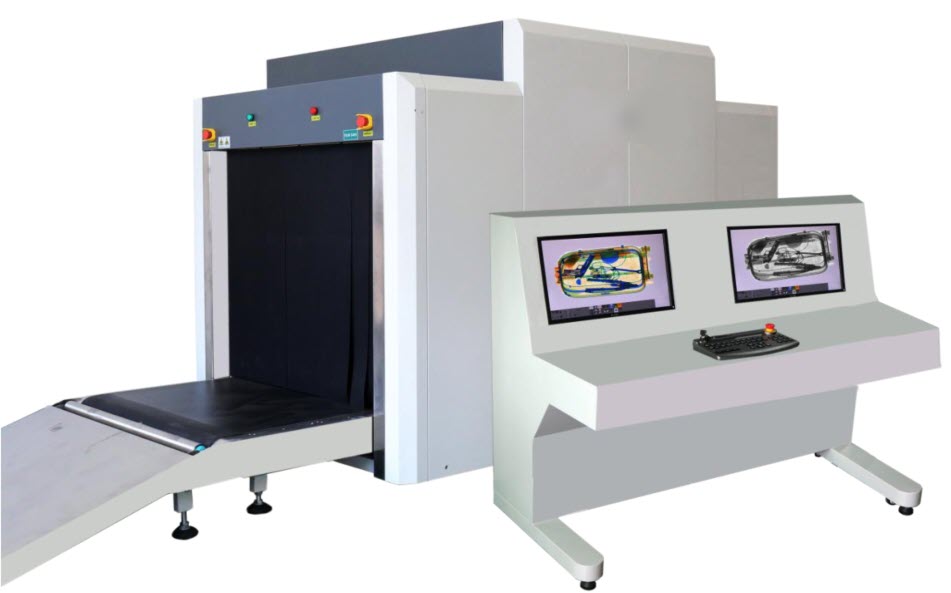

SE-SPX100100:X Ray Baggage Scanner
Related Documents:
SE-SPX100100 X Ray Scanner Datasheet.pdf
-Dimensions (L×W×H) :3638.5mm x1295mm x1916.5 mm
-Device Weight: 942Kg
-Tunnel Size: 1010mm×1003mm
-Conveyor Speed: 0.2m/s
-Conveyor height : 338.5mm
-Conveyor Max Load:200kg
-Wire Resolution:38AWG standard, 40AWG typical
-Penetration: 27 mm steel
-Film Safety :Guarantee ASA/ISO1600 Film
-X-ray Leakage: <1 μSv/h (at a distance of 5cm From external housing)
