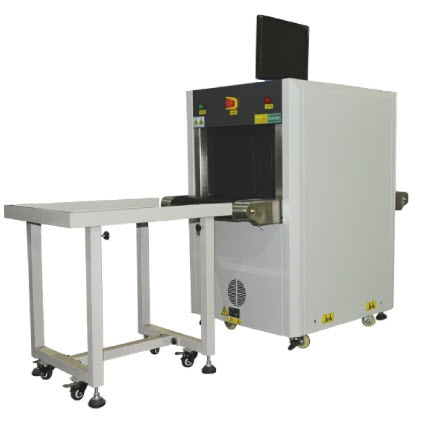

SE-SPX5030C:X Ray Baggage Scanner
Related Documents:
SE-SPX5030C-X Ray Baggage Scanner.pdf
-Tunnel size 504*320mm (w*h)
-Conveyor speed 0.20m/s
-Conveyor height 693mm
-Max Load 100kgs
-Wire Resolution 38AWG
-Spatial resolution vertical：diameter 1.0mm，horizontal：diameter 1.0mm
-Penetration 14-16mm steel panel
-Monitor 17inch，resolution 1280*1024
-X Ray generator anode voltage 100KV
-Cooling/operation cycle Oil Cooling /100%
-X ray Dose per inspection <0.16 μSv

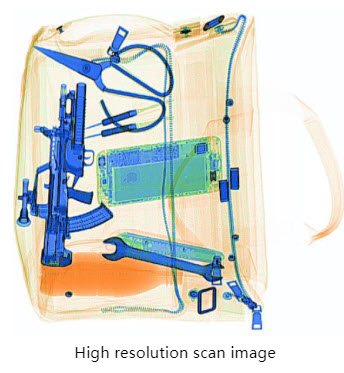

-Image processing Pseudo color/black &white image, Negative Image, High Penetration,Super-enhancement, histogram equalization, check back/forward, Automatic save image
-Zoom Variable zoom up to X32, support continuous magnification.
-Image Checking Continuous check back image
-Storage capacity Can store more than 100000 image
-Dose per inspection <0.125 μSv
-Radiation leakage <0.4 μSv/h（5cm away from fame）in full compliance with all international radiation
-safety requirements. Film safety In accordance with ASA/ISO1600 film safe standard
-Frame size 1199*728*1197mm (L*W*H）
