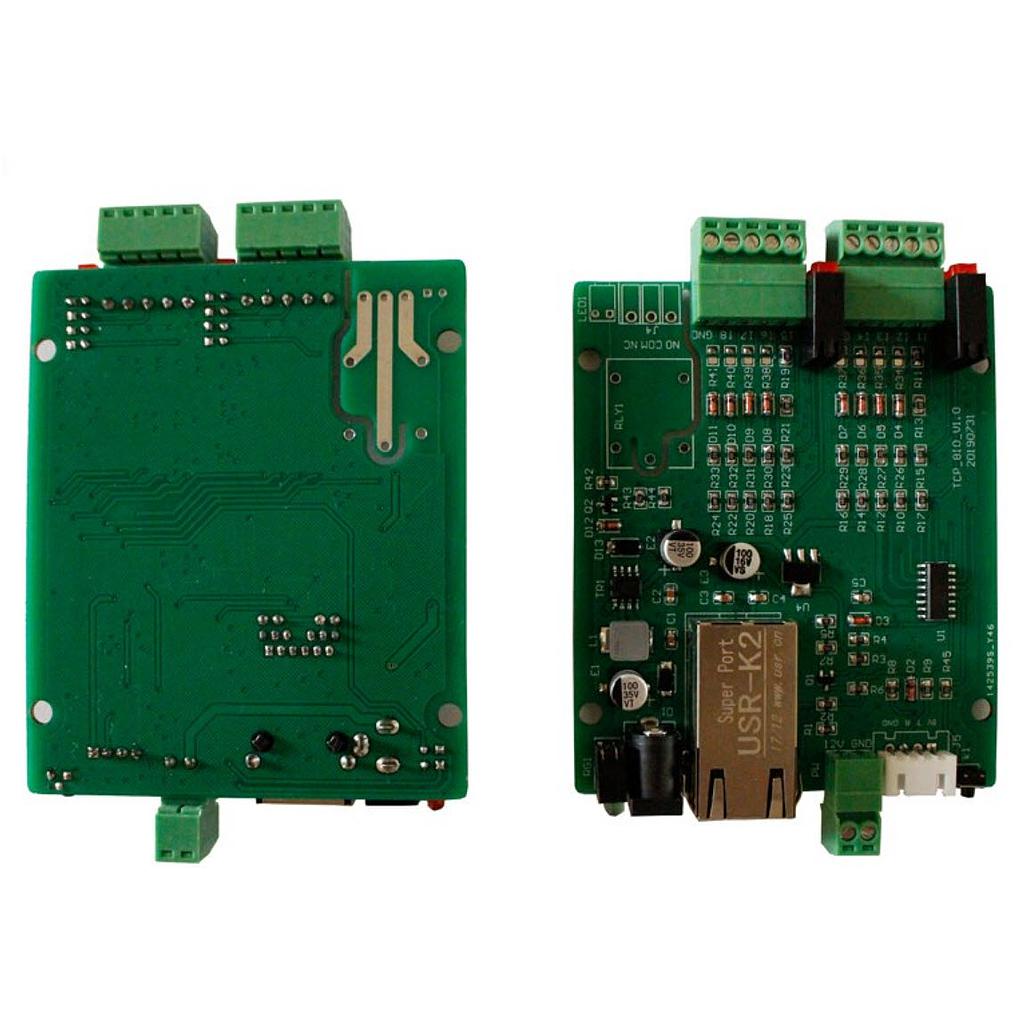

CVT-ETH<>OUT08:Ethernet to 8CH Input
-Size: 110mm x 76mm x 20mm
-Weight: about 50g (PCB board, without steel housing)
-Power supply: DC9V to DC24V/1A, suggest DC12V
-Static working current: <150mA (DC12V)
-Dynamic current: when all relay closed less than 320mA (under DC12V power)
-Wiegand interface: support 2CH Wiegand input and output (WG26/34/66 bit)
-Input: support 4CH dry contact electric input (provide jump for set high/low level)
-Output: 1 channel of relay output
-Communication interface: 10M/100M RJ45 Ethernet and UART-TTL
-Baud rate: 9600BPS (default, can set by software)
-Address ID: none (defaults ID none, can set by command, range: 1 to 255)
Product Features:
Using high quality electronic integrated module, Provide good electrical properties.
Support 2 channel Wiegand input and output
Support 4 channel dry contact electric input
Support 1 channel of relay output
Working power: DC9V to DC24V.
Restore factory default
Upgrade firmware via TTL network
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Support various LED to indicate work status
Guarantee reliable data transmission and long working life.
Set software watchdog timer (about 1s for restart) for keep the device working fine.
