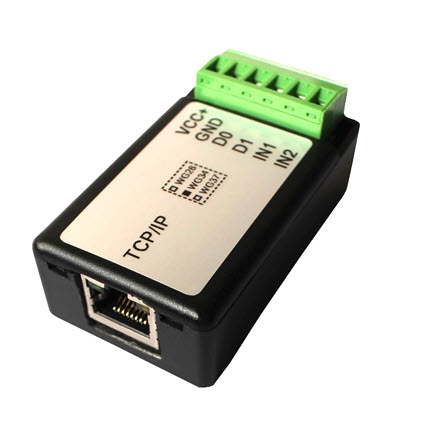

CVT-WG<>TCP:Wiegand To TCP
-Size: 90mm x 45mm x 35mm
-Net Weight: 0.1KG
-Operating voltage: DC 9V-12V;
-Baud rate: 9600 (N, 8, 1)
-Network interface: Super port USR-K2 Ethernet RJ45 port (it adopt 10M/100M self-adaption
-interface, support AUTO MDI/MDIX,support 2KV Electromagnetic isolation)
-Network protocol: support Ethernet, ARP, IP, UDP, TCP, etc.
-Working Temperature: -25~75℃
-Storage Temperature: -40~105℃
Product Features:
Standard Wiegand communication converter is designed for transfer Wiegand data (26bit 34bit,37bits) with other device which have Wiegand input interface. It mainly use for hand-held testing tool or embedding into products manufactured by third-parties, especially for our RFID an access control system solution.
The converter support double-way transmission, can transfer Wiegand 26bit Wiegand 34bit or wiegand 37 bit data to TCP/IP data, also can transfer data via TCP/IP interface to Wiegand 26bit Wiegand 34bit data.
Standard Wiegand output 26bit data in default (Wiegand 34bit and other format as optional standard TCP/IP output ASCII number (hex format as optional) with communication protocol based on 9600,N,8,1 standard.
