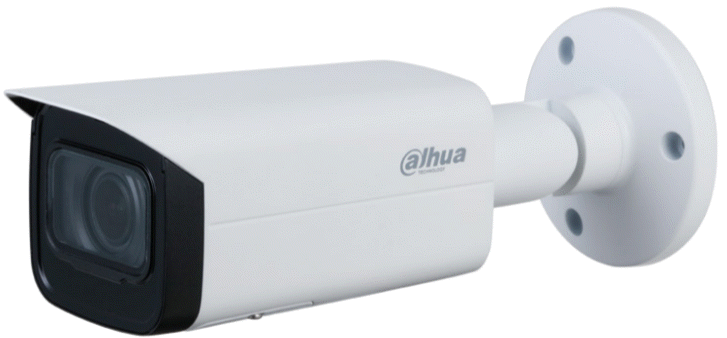

8M Vari-focal Bullet IP Cam
เอกสารที่เกี่ยวข้อง สเปค คุณสมบัติ คู่มือ
· 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
· Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 60 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, local alarm, voltage detection,audio abnormal
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
· 12V DC/POE power support
· IP67 protection
CCTV-HFW2831TP-ZAS-S2 Dahua 8MP Vari-focal IP Bullet — กล้อง IP Camera Dahua 8MP Vari-focal Bullet — HFW2831TP-ZAS-S2
CCTV-HFW2831TP-ZAS-S2 คือกล้อง Dahua DH-IPC-HFW2831TP-ZAS-S2 IP Camera 8MP Vari-focal Bullet — Premium 4K-class resolution
คุณสมบัติเด่น CCTV-HFW2831TP-ZAS-S2
- · Intelligent Detection: Intrusion, tripwire
- · Abnormality Detection: Motion detection, video tampering, no SD card,
- · Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD
- 8Mp H.265+: Starlight IVS
- System Overview: Starlight
- (Supported By Some Select Models).: intelligent functions, such as tripwire and intrusion.
สเปคทางเทคนิค (จาก Datasheet)
| · Intelligent Detection | Intrusion, tripwire |
|---|---|
| · Abnormality Detection | Motion detection, video tampering, no SD card, |
| · Alarm | 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD |
| 8Mp H.265+ | Starlight IVS |
| System Overview | Starlight |
| (Supported By Some Select Models). | intelligent functions, such as tripwire and intrusion. |
| IP67 | The camera passes a series of strict test on dust and soak. It has |
| Wide Voltage | The camera allows ±30% input voltage tolerance (wide |
| Technical Specification | Bit Rate Control CBR/VBR |
| Camera | H.264: 32 Kbps–8192 Kbps |
| H.265 | 12 Kbps–8192 Kbps |
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS |
| Day/Night | Auto(ICR)/Color/B/W |
| Effective Pixels | 3840 (H) × 2160 (V) |
| BLC | Yes |
เหมาะสำหรับใคร
- 🏢 อาคารสำนักงาน — Lobby + Common Areas
- 🏪 ร้านค้า / ห้าง — Anti-theft + Customer Counting
- 🏭 โรงงาน — Production Line + Inventory
- 🏘 บ้าน / คอนโด — Smart Home Security
- 🅿 ลานจอด — Parking Surveillance
- 🏥 โรงพยาบาล — Lobby + Restricted Areas
FAQ
Q: รุ่นไหนใช้ Analog / IP / HDCVI
A: HDCVI (HAC-HFW2241E, HFW1200M-I2) — Analog HD ผ่านสายโคแอกซ์เดิม / IP (IPC-HFW2231/HFW2831/EW4431) — เครือข่าย LAN ผ่าน PoE / XVR (XVR4104) — Hybrid รับได้ทั้ง HDCVI + IP
Q: บันทึก NVR กี่ช่อง
A: CCTV-NVR2408 8 channel / CCTV-XVR4104 4 channel hybrid — เลือกตามจำนวนกล้อง + ประเภท
Q: Face Recognition Camera ใช้กับ Access Control ได้ไหม
A: ได้ — CCTV-DM-FR21 รองรับ Face DB 10,000 + Wiegand Output ไปยังตู้สามขา / ประตู
Q: รับประกัน
A: 1-2 ปี Hardware + Lifetime After-Sales — โทร 02-105-4034 / LINE @dollysolutions
เปรียบเทียบ CCTV Family
| รุ่น | ประเภท | ลักษณะเด่น |
|---|---|---|
| CCTV-DM-FR21 | Face Recognition | HiSilicon 2MP + Face DB 10,000 |
| CCTV-HAC-HFW2241E | CVI | Dahua CVI Starlight 2MP |
| CCTV-HDCVI2 | HDCVI | HFW1200M-I2 2MP |
| CCTV-IPC2231 | IP | Dahua IPC 2MP Motorized |
| CCTV-HFW2831TP-ZAS-S2 | IP | Dahua 8MP Vari-focal |
| CCTV-IPC-EW4431-ASW | IP Fisheye | 4MP 360° |
| CCTV-NVR2408 | NVR | Dahua 8CH 4K-class |
| CCTV-XVR4104 | XVR | Dahua 4CH Hybrid |
