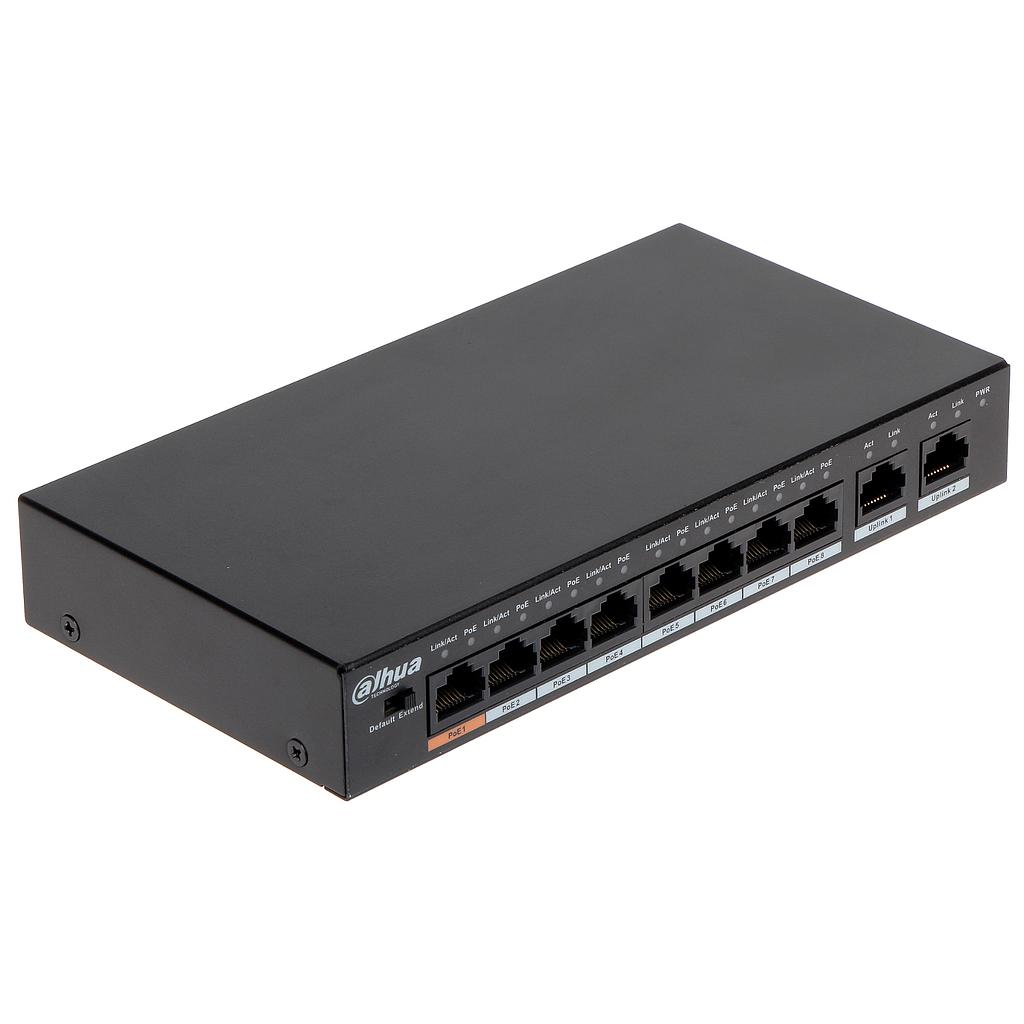

DAHUA 8PoE+2 | AI-DH-PFS3010-8ET-96
-Data Transmission :Port Port 1–8 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
-Power Supply : 48 V - 57 V DC
-Power Consumption
Idling: 3 W
Full load: 96 W
-Capacity: 5.60 Gbps
- Packet Forwarding Rate: 4.17 Mpps
-Packet Buffer Memory:4 Mbit
-MAC Table Size: 8K
-PoE Power: 96 W
-Long Distance PoE: 250 m long distance PoE transmission
Dahua 8PoE+2 Switch — IT-SW05-DH-PFS3010
✅ จุดเด่น
- 8 PoE ports
- 2 uplink Gigabit
- ใช้กับกล้อง IP
- AI ready
📋 สเปก
| Brand | Dahua |
| Ports | 8 PoE + 2 uplink |
| PoE Power | 96W total |
| Compatible | IPCam Dahua |
❓ คำถามที่พบบ่อย
Q: DAHUA PFS3010-8ET-96 PoE+ ใช้กับอะไร?
A: 8-port PoE+ for IP Camera, IP Phone, AP, IoT devices. 96W total power budget = 8 ports × 12W average. 2 Uplink ports Gigabit สำหรับ NVR / Router. ใช้กับ CCTV system ขนาด 6-8 กล้อง
Q: PoE+ 30W/port — Power สำหรับกล้องไหน?
A: Standard IP Camera: 6-8W. PTZ Camera: 25-30W. AP indoor: 12-25W. AP outdoor: 25-30W. PoE++ (60W): สำหรับ AP WiFi 6E/7, large display. PFS3010 PoE+ = ครอบคลุม 95% use case
Q: 8 PoE + 2 Uplink — Topology setup?
A: 8 ports PoE downlink → connect IP devices (cameras, AP). 2 Uplink Gigabit → connect NVR + Router (for internet + management). Switching ภายในของ 8 ports ผ่าน Uplink 2 Gbps combined (Link Aggregation optional)
Q: Unmanaged vs Managed — PFS3010 รุ่นไหน?
A: Default PFS3010-8ET-96 = Unmanaged: Plug-and-Play, no config. หากต้องการ VLAN/QoS → upgrade เป็น PFS3210 series (Managed). Unmanaged = simpler; Managed = enterprise
Q: AI + Smart features?
A: Dahua Smart features: Auto-detect PoE device + power up sequentially. Watchdog: Auto-reboot offline device. Loop detection: ป้องกัน network loop. Power monitoring: per-port consumption visible
Q: Mounting + Cable management?
A: Desktop or Wall mount (mounting screws รวมในกล่อง). หาก Rack mount → Optional 1U rack bracket. Cable management: Front 10 ports facing user, Cable channel ด้านบน-ล่าง สำหรับ flexible routing
