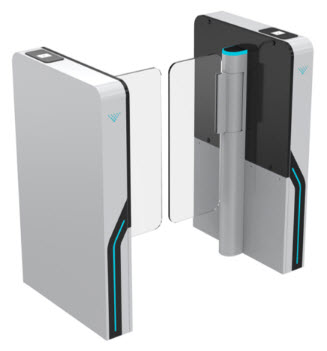

ประตูกั้นบานสวิง Swing Gate
-Size 600*130*980mm
-Pass width: 600-900mm
-Infrared sensor : 4pairs
-Material: Cold plate baking finish 1.5mm
-Motor : Brushless Motor
-Dry Contact / RS485
-Motor power consumption:

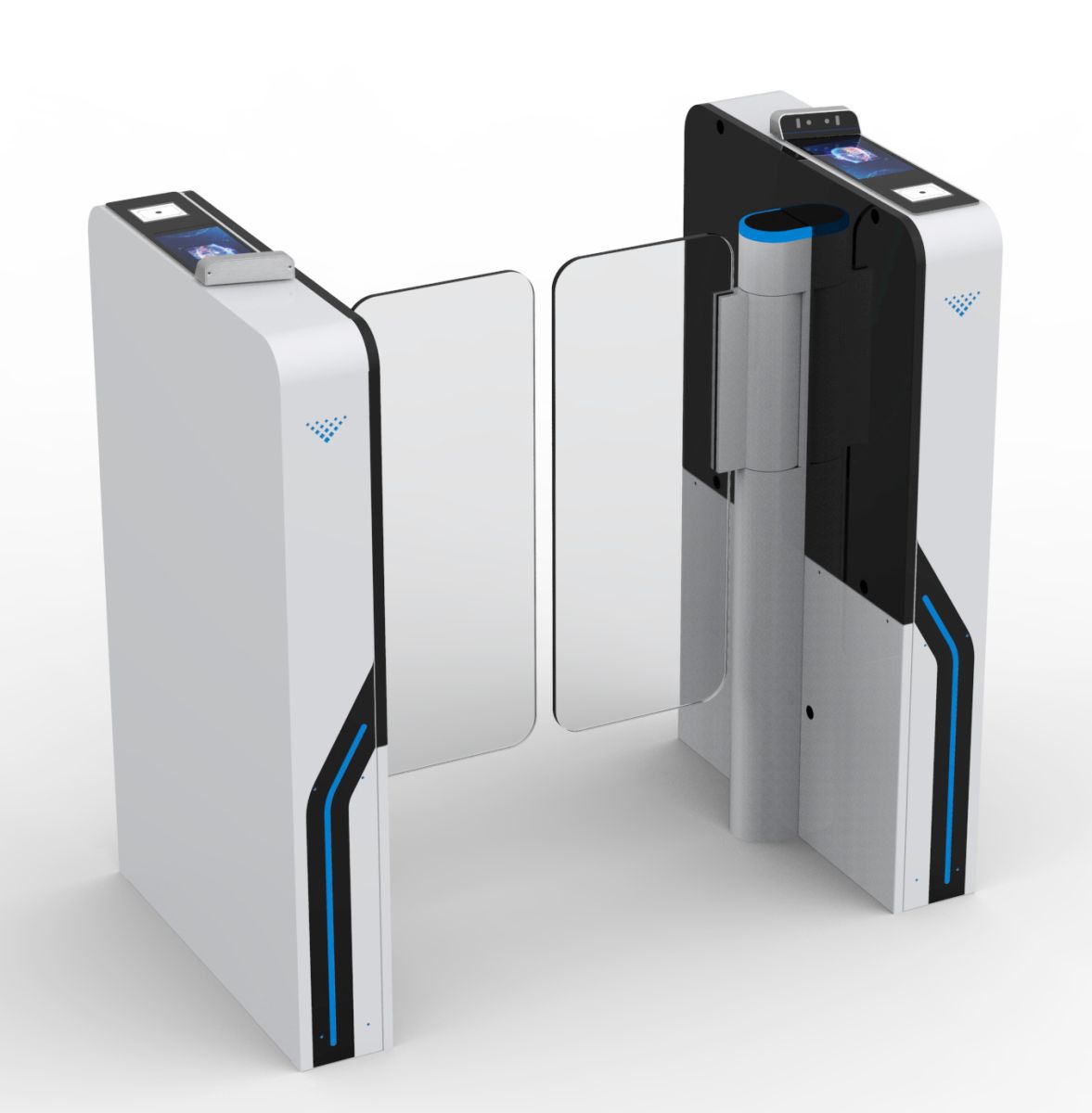

Compact Swing Gate — ประตูกั้นบานสวิงคอมแพค (600×130×980mm, IR 4 pairs, Brushless Motor, Cold Plate 1.5mm)
TS-TB3213 คือ Compact Swing Gate ขนาดเล็กพิเศษ 600 × 130 × 980 มม. — Pass Width 600-900 มม. — Infrared Sensor 4 pairs — Material Cold Plate Baking Finish 1.5 มม. — Drive Brushless Motor (Maintenance Free) — Control Dry Contact / RS485 — เหมาะกับ Office ขนาดเล็ก, ร้านค้า, Co-working Space ที่มีพื้นที่จำกัด

คุณสมบัติเด่น TS-TB3213 (จาก Sale Description)
- 📐 Compact 600 × 130 × 980 มม. — Slim Profile
- 📏 Pass Width 600-900 มม. — รองรับ ADA / สัมภาระ
- 🚨 IR Sensor 4 pairs — Anti-Pinch + Anti-Tailgating
- 🎨 Cold Plate Baking Finish 1.5 มม. — เคลือบสีพิเศษ ทนการขีดข่วน
- ⚡ Brushless Motor — Maintenance Free
- 🔌 Dry Contact + RS485 Communication
- 🚨 Auto-Open Power Failure (Fail-safe)
- 🚦 LED Direction Indicator



สเปคจาก Sale Description (TS-TB3213)
| Size | 600 × 130 × 980 มม. (Compact) |
|---|---|
| Pass Width | 600-900 มม. |
| Infrared Sensor | 4 pairs |
| Material | Cold Plate Baking Finish 1.5 มม. |
| Motor | Brushless Motor |
| Control / Communication | Dry Contact / RS485 |
| Anti-Pinch | มี (IR Detection) |
| Power Failure | Auto-Open (Fail-safe) |
เลือก TS-TB3213 เมื่อ
- 📐 Office ขนาดเล็ก / SME
- 🪑 Co-working Space แคบ
- 🏪 Boutique Shop
- 📡 ต้องการ RS485 integration
- 🆚 TS-TB308 1210×170×980 + DC36 Servo
FAQ
Q: Swing Gate ใช้ที่ไหนดี
A: Lobby Premium + ทางที่ต้องการ Wide Pass (รถเข็น/พิการ/Luggage) — Passage Width ≤ 950mm — เปิด-ปิด Smooth Quiet
Q: เครื่องเปิดหลายลักษณะ
A: Direction Arrow LED + Auto reset เมื่อไม่มี passage — Fail-Safe ปลดล็อคเมื่อไฟดับตามมาตรฐานอัคคีภัย
Q: One Movement vs Two Movement
A: One Movement = ทิศทางเดียว / Two Movement = Bi-directional (เข้า-ออก ใช้บานเดียวกัน)
Q: ติด Card Reader ที่ไหน
A: ติดที่ Cabinet Top / Side — รองรับ RFID / Face / QR / Fingerprint — Wiegand Output มาตรฐาน
Q: รับประกัน
A: 1-2 ปี Hardware + Lifetime — โทร 02-105-4034 / LINE @dollysolutions
เปรียบเทียบ Swing Gate Family
| รุ่น | Movement | Application |
|---|---|---|
| TS-AK326-O | One (IP54) | Outdoor |
| TS-SG1A | One | Lobby Compact |
| TS-SG1AT | Two | Lobby Bi-direction |
| TS-SG-CP1-O/T | One/Two | Lobby + Glass |
| TS-H8008-12A | Speed Swing | Office Premium |
